食品科學研究的桌面分光光度計

產品内容
包裝和交付
產品描述
供應能力和附加資訊

產品内容

手機號: CS-820P

包裝和交付

銷售組織:

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

產品描述

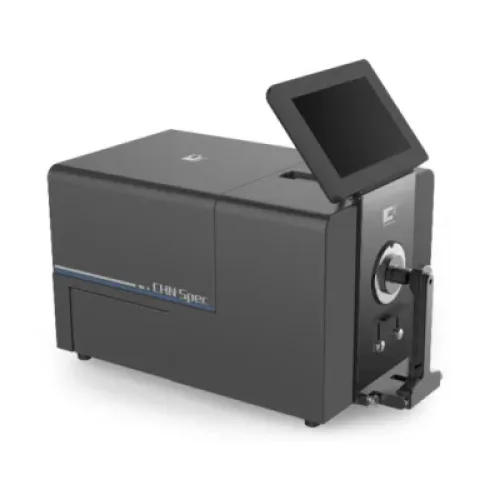

CHNSPEC CS-820P桌面分光光度計食品科學研究產品描述

CS-820p是一種智能，簡單且高精確的分光光度計。它採用7英寸觸摸屏，全波長范圍，Android操作系統。照明：反射率d/8°和透射d/0°（包括/紫外線不包括/紫外線），顏色測量的高精度，大存儲內存，PC軟件，由於上述優勢，它用於實驗室用於顏色分析和通信。
產品功能
*自動校準
*高穩定性紫外線源，提供穩定的熒光測量結果
*在黑色樣品上測量時出色的可重複性
*與美國，日本和歐洲生產的其他競爭產品一致性
*出色的長期可重複性，即使在環境快速變化之後仍然可以保證出色的可重複性
*24種照明劑和40多種測量指數
*溫度和濕度補償功能
*七英寸觸摸屏，Android操作系統
*雙光路頻譜分析技術
*支持SCI+SCE同時快速測量
*它有兩個燈：脈衝氙氣和LED

Illumination/ Viewing System	Reflection: d/8(Diffused illumination, 8 degree viewing) Simultaneous measurement of SCI/SCE (ISO7724/1, CIE No.15, ASTM E1164, ASTM-D1003-07, DIN5033 Teil7,JIS Z8722 Condition C standard) Transmittance d/0(Diffused illumination, 0 degree viewing )
Sensor	Silicon Photodiode Array
Grating Method	Concave Grating
Sphere Diameter	152mm
Wavelength	360-780nm
Wavelength Pitch	10nm
Half Band Width	5nm
Reflectance Range Resolution	0-200% 0.01%
Light Source	Pulse Xenon Lamp and LED
UV Measurement	Include UV, 400nm cut, 420nm cut, 460nm cut
Measurement Time	SCI/SCE < 2s SCI+SCE < 4s
Measurement Aperture	Reflectance: XLAV Φ30mm, LAV 18mm,MAV Φ11mm,SAV Φ6mm Transmittance:Φ25mm (Auto aperture size recognition)
Transmittance Sample Size	No limit on sample width and height, thickness ≤50mm
Repeatability	XLAV Spectrum Reflectance/Transmittance: standard deviation within 0.1% XLAV Chromaticity value: Standard deviation within ΔEab 0.015 When a white calibration plate is measured 30 x at 5-second intervals after white calibration
Inter-Instrument Agreement	XLAV ΔE*ab 0.15 (BCRA Series II, Average measurement of 12 tiles, at 23ºC)
Illuminants	A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 CWF,U30,DLF,NBF,TL83,TL84
Language	English, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish, Chinese (simple and traditional),
Display	Reflectance and Transmittance graph/value, color value, color difference values, pass/fail, color simulation, color assessment, haze, liquid chromaticity values, color tendency
Viewing Angles	2° and 10°
Color Spaces	Lab, LCh, Hunter Lab, Yxy, XYZ
Other Indices	WI(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457, AATCC, Hunter, Taube Berger, Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),Metamerism index milm, stain fastness, color fastness, ISO brightness, R457, A density, T density, E density, M Density, APHA/Pt-Co/Hazen, Gardner, Saybolt, ASTM color, Haze, Total Transmittance, Opacity, Color Strength
Color Difference	ΔEab, ΔECH, ΔEuv, ΔEcmc, ΔE94, ΔE00, ΔE*ab(hunter),555 shade sort
Storage Memory	8 GB U Disk for data storage and transfer
Screen Size	7 Inches Touch Screen
Power	12V/3A
Operate Temperature	5-40ºC(40-104F), relative humidity 80% (at 35ºC) no condensation
Storage Temperature	-20-45ºC(-4-113F), relative humidity 80% (at 35ºC) no condensation
Accessories	Power Adaptor, USB Cable, fixture for transmittance, U disk (PC software), Black Calibration Cavity, White and Green Calibration Tile, Reflectance Test Support,30mm,18mm,11mm and 6mm apertures, reflectance sample fixture, Glass Cell 40x10mm
Optional Accessories	Heating Fixture for Transmittance, Vertical Support and Pneumatic ram for downward measurement, Reflectance fixture for small size sample, Reflectance Glass Cell Support, Corrosion-Resistant Protective Plate (non-removable), Sample Holder for Fiber, Film Fixture, Transmittance Fixture for Small Aperture, Trolley Case, European Standard Plug, American Standard Plug
Interface	USB, USB-B and RS-232
Instrument Size	465x240x260mm
Weight	10.8kgs
Other Function	1. Camera to view measurement area; 2. Support horizontal, vertical and downward measurement method (need optional accessories to support for downward measurement); 3. Auto humidity and temperature compensation function.
