手機號: DS-37D
Model: DS-36D
Range: 360nm-780nm
Function: color detection
Caliber: Reflection: XLAV Φ 25.4mm/Φ 30mm; LAVΦ15mm/Φ18mm； MAVΦ8mm/Φ11mm； SAVΦ3mm/Φ6mm Users can customize the caliber and switch between calibers for automatic recognition Transmission: Φ 17mm/Φ 25mm
支持應用程序: 支持
支持PC軟件: 支持
應用區域: 主要用於材料顏色檢測，例如噴塗，塑料，印刷，金屬，陶瓷，建築材料，皮革，油漆等。
Size: 63*43*44cm
Weight: 17.2kg
Measurement Stability: ΔE*ab≤0.005
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it

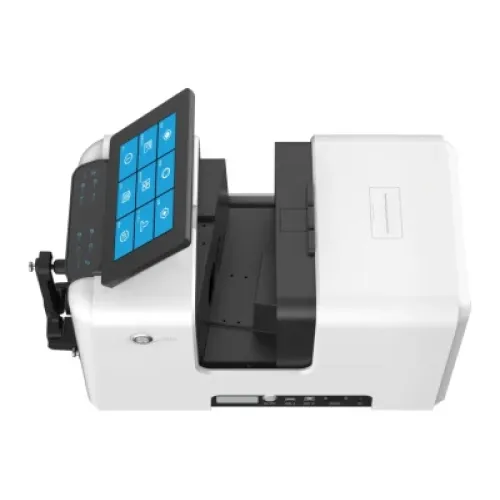

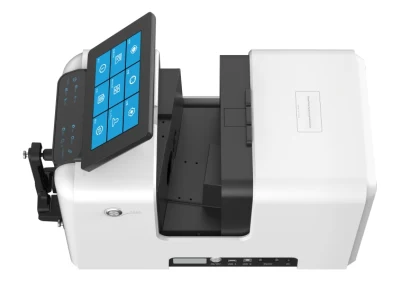

| Benchtop spectrophotometer | |
| Model | DS-37D |
|
|
Reflection:d/8(diffuse illumination,8°direction reception) |
| SCI(Contains specular reflected light)/ SCE(not contain specular reflected light)measure at same time. Compliance standards:CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,DIN5033 Teil7, JIS Z8722 Condition C,ASTM E1164,ASTM-D1003-07 |
|
| Transmission:d/0(diffuse illumination, vertical reception) | |

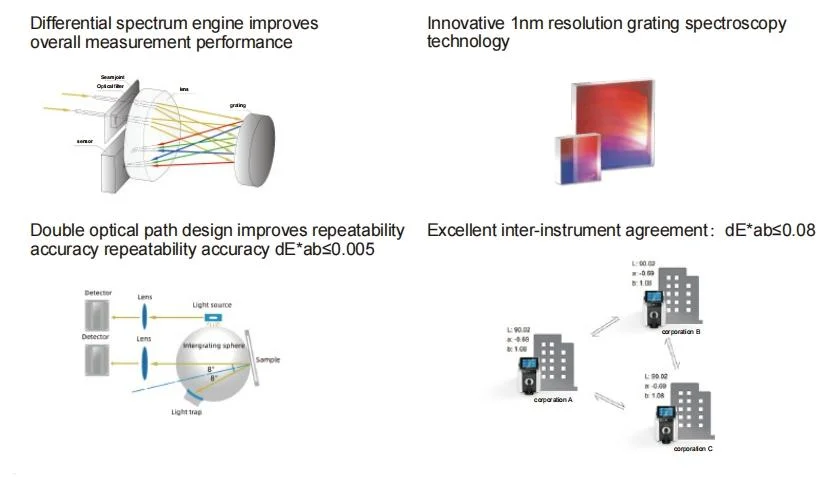

| Sensor | Differential spectrum engine |
| Spectroscopic method | Concave grating |
| Integrating sphere diameter | 152mm |
| Wavelength range | 360nm-780nm |
| Wavelengthinterval | 10nm |
| Reflectance measurement range | 0-200%,resolution 0.01% |
| Lighting source | Pulsed xenon lamps andLED |
| Ultraviolet measurement | IncludesUV,400nmcutoff,420nmcutoff,460nmcutoff |
| Measuring time | Single mode<2s |
| Lighting/measurin g calibers | Reflection:XLAV Φ25.4mm/Φ30mm;LAVΦ15mm/Φ18mm;MAVΦ8mm/Φ11mm;SAVΦ3mm/Φ6mm Users can customize the calibre, and the calibre switch is automatically recognized Transmission:Φ17mm/Φ25mm |
| Transmission measurement specification | Sample height and thickness:height is not limited, thickness≤50mm |
| Repeatability |
ΔE*ab≤0.005,
Spectral reflection/transmittance ≤0.1% |
| Inter-Instrument Agreement | XLAV ΔE*ab 0.12 |
| Long-term repeatability | XLAV chroma value:standard deviation ΔE*ab within 0.01(under constant temperature conditions,the white correction plate is measured every hour within 24 hours) |
| Standard observer | 2°Standard observer and 10°Standard observer |
| Viewing light source | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65, LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8 |
| Language | Simplified Chinese,English, Traditional Chinese, Russian, Spanish, Portuguese, Japanese, Thai, Korean,German, French, Polish |
| Display content | Spectral data,Spectrogram, chromaticity data, chromaticity Data, chromaticity map, Pass/Fail judgment, Simulation color, Color evaluation, fog, liquid chromaticity, Color bias |
| Color space | CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy |
| Chroma index | WI(ASTM E313-20,ASTM E313-73,CIE,AATCC,Hunter,Taube,Berger Stensby),YI(ASTM D1925,ASTM E313-20,ASTM E313-73), Tint(ASTM E313-20),Isochromatic index Milm,color fastness,color changing fastness,ISO brightness,R457,A density,T density,E density,M density,APHA/Hazen/ Pt-Co((platinum-cobalt index),Gardner(Gardner Index),Saybolt(SeibertIndex),Astm color,fog, total transmittance, covering power, force, intensity |
| Color difference formula | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555color tone classification |
| Storage | 8GB |
| Screen size | 7-inch capacitive touch screen |
| Operating system | Android |
| Power source | Dc regulated power supply |
| Operating temperature and humidity | 5~40°C,relative humidity 80%(35°C)below no condensation |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
HS編碼: 9027300090
港口: Contact salesperson to confirm
