手機號: CS-820P
Model: CS-820P
Range: 360nm-780nm
Function: color detection
Measurement Stability: ΔE*ab≤0.02，
Caliber: Reflection: XLAV Φ 25.4mm/Φ 30mm LAV Φ 15mm/Φ 18mm MAV Φ 8mm/Φ 11mm SAV Φ 3mm/Φ 6mm Users can customize the aperture, and the aperture switch automatically recognizes the transmission: Φ 17mm/Φ 25mm
支持應用程序: 支持
支持PC軟件: 支持
應用區域: 主要用於材料顏色檢測，例如噴塗，塑料，印刷，金屬，陶瓷，建築材料，皮革，油漆等。
Size: 45*57*47cm
Weight: 14.9kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
| 下載: |
|
The file is encrypted. Please fill in the following information to continue accessing it

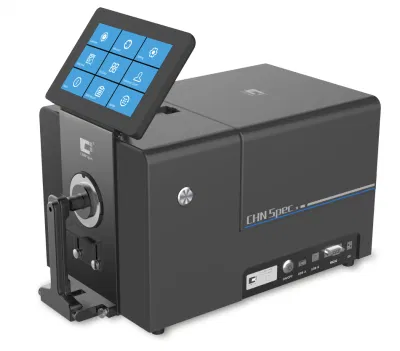

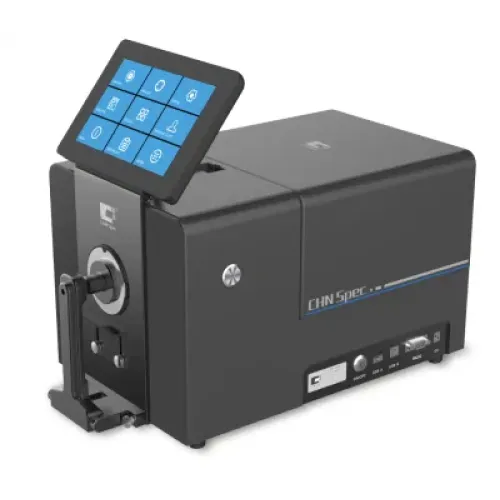

CS-820p是一種智能，簡單且精確的分光光度計。它採用7英寸觸摸屏，全波長范圍，Android操作系統。照明：反射率d/8°和透射d/0°（包括/紫外線不包括/紫外線），顏色測量的高精度，大存儲內存，PC軟件，由於上述優勢，它用於實驗室用於顏色分析和通信。
產品功能
*自動校準
*高穩定性紫外線源，提供穩定的熒光測量結果
*在黑色樣品上測量時出色的可重複性
*與美國，日本和歐洲生產的其他競爭產品一致性
*出色的長期可重複性，即使在環境快速變化之後仍然可以保證出色的可重複性
*24種照明劑和40多種測量指數
*溫度和濕度補償功能
*七英寸觸摸屏，Android操作系統
*雙光路頻譜分析技術
*支持SCI+SCE同時快速測量
*它有兩個燈：脈衝氙氣和LED
| Illumination/ Viewing System | Reflection: d/8(Diffused illumination, 8 degree viewing) Simultaneous measurement of SCI/SCE (ISO7724/1, CIE No.15, ASTM E1164, ASTM-D1003-07, DIN5033 Teil7,JIS Z8722 Condition C standard) Transmittance d/0(Diffused illumination, 0 degree viewing ) |
| Sensor | Silicon Photodiode Array |
| Grating Method | Concave Grating |
| Sphere Diameter | 152mm |
| Wavelength | 360-780nm |
| Wavelength Pitch | 10nm |
| Half Band Width | 5nm |
| Reflectance Range Resolution |
0-200% 0.01% |
| Light Source | Pulse Xenon Lamp and LED |
| UV Measurement | Include UV, 400nm cut, 420nm cut, 460nm cut |
| Measurement Time | SCI/SCE < 2s SCI+SCE < 4s |
| Measurement Aperture | Reflectance: XLAV Φ30mm, LAV 18mm,MAV Φ11mm,SAV Φ6mm Transmittance:Φ25mm (Auto aperture size recognition) |
| Transmittance Sample Size | No limit on sample width and height, thickness ≤50mm |
| Repeatability | XLAV Spectrum Reflectance/Transmittance: standard deviation within 0.1% XLAV Chromaticity value: Standard deviation within ΔE*ab 0.015 * When a white calibration plate is measured 30 x at 5-second intervals after white calibration |
| Inter-Instrument Agreement | XLAV ΔE*ab 0.15 (BCRA Series II, Average measurement of 12 tiles, at 23ºC) |
| Illuminants | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 CWF,U30,DLF,NBF,TL83,TL84 |
| Language | English, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish, Chinese (simple and traditional), |
| Display | Reflectance and Transmittance graph/value, color value, color difference values, pass/fail, color simulation, color assessment, haze, liquid chromaticity values, color tendency |
| Viewing Angles | 2° and 10° |
| Color Spaces | L*a*b, L*C*h, Hunter Lab, Yxy, XYZ |
| Other Indices | WI(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457, AATCC, Hunter, Taube Berger, Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),Metamerism index milm, stain fastness, color fastness, ISO brightness, R457, A density, T density, E density, M Density, APHA/Pt-Co/Hazen, Gardner, Saybolt, ASTM color, Haze, Total Transmittance, Opacity, Color Strength |
| Color Difference | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔE*ab(hunter),555 shade sort |
| Storage Memory | 8 GB U Disk for data storage and transfer |
| Screen Size | 7 Inches Touch Screen |
| Power | 12V/3A |
| Operate Temperature | 5-40ºC(40-104F), relative humidity 80% (at 35ºC) no condensation |
| Storage Temperature | -20-45ºC(-4-113F), relative humidity 80% (at 35ºC) no condensation |
| Accessories | Power Adaptor, USB Cable, fixture for transmittance, U disk (PC software), Black Calibration Cavity, White and Green Calibration Tile, Reflectance Test Support,30mm,18mm,11mm and 6mm apertures, reflectance sample fixture, Glass Cell 40x10mm |
| Optional Accessories | Heating Fixture for Transmittance, Vertical Support and Pneumatic ram for downward measurement, Reflectance fixture for small size sample, Reflectance Glass Cell Support, Corrosion-Resistant Protective Plate (non-removable), Sample Holder for Fiber, Film Fixture, Transmittance Fixture for Small Aperture, Trolley Case, European Standard Plug, American Standard Plug |
| Interface | USB, USB-B and RS-232 |
| Instrument Size | 465x240x260mm |
| Weight | 10.8kgs |
| Other Function | 1. Camera to view measurement area; 2. Support horizontal, vertical and downward measurement method (need optional accessories to support for downward measurement); 3. Auto humidity and temperature compensation function. |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
HS編碼: 9027300090
港口: Contact salesperson to confirm
