手機號: CS-821N
Model: CS-821N
Range: 360nm-780nm
Function: color detection
Measurement Stability: ΔE*ab≤0.015
Caliber: Reflection: XLAV Φ25.4mm/Φ30mm LAVΦ15mm/Φ18mm MAVΦ8mm/Φ11mm SAVΦ3mm/Φ6mm Users can customize the aperture, and the aperture switch is automatically recognized Transmission: Φ17mm/Φ25mm
支持應用程序: 支持
支持PC軟件: 支持
應用區域: 主要用於材料顏色檢測，例如噴塗，塑料，印刷，金屬，陶瓷，建築材料，皮革，油漆等。
Size: 45*57*47cm
Weight: 16kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
| 下載: |
|
The file is encrypted. Please fill in the following information to continue accessing it

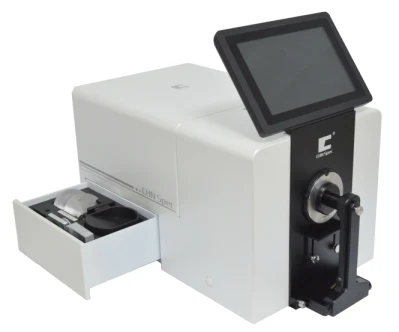

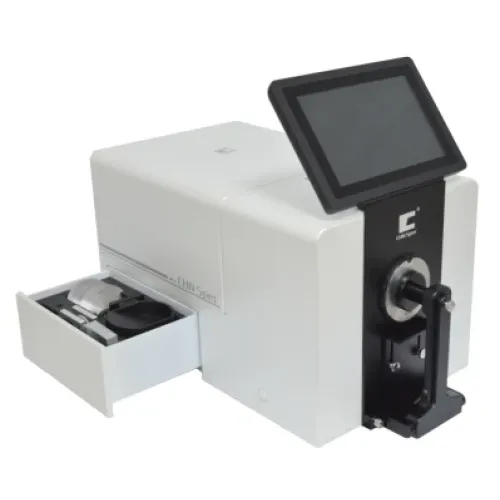

CS-821N是一種高度穩定的台式分光光度計；新升級的自動校準技術可以確保該儀器的出色穩定性，即使在發生急劇變化的情況下，也可以進行長期使用和測量。台式分光光度計CS-821N具有兩個照明來源：脈衝氙氣和LED；使用24個標準光源和40多個測量指標，它可以在各種光源和顏色指標下模擬和計算顏色數據。
*車間差異：DE <0.15（XLAV口徑）
*它有兩種照明來源：脈衝氙燈和LED
*有24種標準光源和40多種測量指數
*溫度和濕度操作補償功能
產品功能
*自動校準
*高穩定性紫外線源，提供穩定的熒光測量結果
*在黑色樣品上測量時出色的可重複性
*與美國，日本和歐洲生產的其他競爭產品一致性
*出色的長期可重複性，即使在環境快速變化之後仍然可以保證出色的可重複性
*24種照明劑和40多種測量指數
*溫度和濕度補償功能
*七英寸觸摸屏，Android操作系統
*雙光路頻譜分析技術
*支持SCI+SCE同時快速測量
*它有兩個燈：脈衝氙氣和LED
| Model | CS-821N |
| Illumination/ Viewing System |
Reflectance: d/8(Diffused illumination, 8 degree viewing);Simultaneous measurement of SCI/SCE, conform to
CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 condition C, ASTM E1164, ASTM-D1003-07 Transmittance d/0(Diffused illumination, 0 degree viewing )
|
| Sensor | Silicon Photodiode Array |
| Grating Method | Concave grating |
| Sphere diameter | 152mm |
| Wavelength range | 360nm-780nm |
| Wavelength interval | 10nm |
| Half width | 5nm |
| Reflectance Range Resolution | 0-200%, resolution 0.01% |
| Lighting source | Pulsed xenon lamp and LED |
| UV measurement | Including UV, 400nm cut, 420nm cut and 460nm cut |
| Measurement time | SCI/SCE < 2s;SCI+SCE < 4s |
| Measurement / illumination aperture |
Reflection: xlav ΦΦ 30mm ,LAV ΦΦ 18mm
MAV Φ 8mm/ Φ 11mm ,SAV Φ 6mm (Auto aperture size recognition) Aperture for transmission: Φ 25mm
|
| Transmittance Sample Size | No limit on sample width and height, thickness ≤50mm |
| Long term repeatability | XLAV Chromaticity value: Standard deviation within ΔE*ab 0.015 (20ºC±10ºC arbitrary temperature change, white tile is measured every hour within 24 hours) |
| Repeatability | XLAV Spectrum Reflectance/Transmittance: standard deviation within 0.1% XLAV Chromaticity value: Standard deviation within ΔE*ab 0.015 * When a white calibration plate is measured 30 x at 10-second intervals after white calibration |
| Inter-Instrument Agreement | XLAV ΔE*ab 0.2 (BCRA Series II, Average measurement of 12 tiles, at 23ºC) |
| Observer | 2 ° and 10 ° |
| Illuminants | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84 |
| Language | English, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish,Chinese (simple and traditional) |
|
Display
|
Reflectance and Transmittance graph/value, color value, color difference values, pass/fail, color simulation, color assessment, haze, liquid chromaticity values, color tendency |
| Color space | L*a*b,L*C*h,Hunter Lab,Yxy,XYZ |
| Color index | WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),Metamerism index milm, stain fastness, color fastness, ISO brightness, R457, A density, T density, E density, M Density, APHA/Pt-Co/Hazen, Gardner, Saybolt, ASTM color, Haze, Total Transmittance, Opacity, Color Strength |
| Colour-difference formula | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555 hue classification |
| Storage space | 8GB |
| Screen size | 7-inch touch screen |
| Operating system | Android |
| Power Supply | DC stabilized power supply |
| Operating temperature and humidity range | 5 ~ 40 ° C, relative humidity below 80% (at 35 ° C), no condensation |
| Storage temperature and humidity range | -20 ~ 45 ° C, relative humidity below 80% (at 35 ° C), no condensation |
Accessories |
Power adapter, data cable, transmission fixture, software USB flash disk, black cavity, white board, green board, 0% calibration shading cover (820n attached), 30mm diameter board,18mm diameter board, 11mm diameter board, 6mm diameter board,support table, cuvette, damping handle |
| Optional Accessories | Heating transmission fixture (including control circuit), vertical support, pneumatic ejector rod(including control circuit), small sample clamping accessories, pull rod box,European standard plug and American standard plug Reflective cuvette support, corrosion-resistant protective plate (non removable), fiber test box, film clamp and micro transmission clamp |
| Interface | RS-232,USB,USB-B |
| Other function | 1. Camera viewfinder positioning; 2. The instrument can measure laterally, upward and downward (using accessories); 3. Automatic temperature and humidity compensation function |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
HS編碼: 9027300090
港口: Contact salesperson to confirm
