高精度台式分光光度計脈衝氙氣燈

最小訂單:	1 Piece/Pieces
港口:	Contact salesperson to confirm

Contact Now

產品内容
包裝和交付
產品描述
供應能力和附加資訊

產品内容

手機號: CS-826

Model: CS-826

Range: 360nm-780nm

Function: color detection

Measurement Stability: ΔE*ab≤0.01

Caliber: Reflection: XLAV Φ 25.4mm/Φ 30mm LAV Φ 15mm/Φ 18mm MAV Φ 8mm/Φ 11mm SAV Φ 3mm/Φ 6mm Users can customize the aperture, and the aperture switch automatically recognizes the transmission: Φ 17mm/Φ 25mm

支持應用程序: 支持

支持PC軟件: 支持

應用區域: 主要用於材料顏色檢測，例如噴塗，塑料，印刷，金屬，陶瓷，建築材料，皮革，油漆等。

Size: 45*57*47cm

Weight: 14.9kg

包裝和交付

銷售組織:	Piece/Pieces
套裝程式類型:	聯繫銷售人員確認
下載:

The file is encrypted. Please fill in the following information to continue accessing it

產品描述

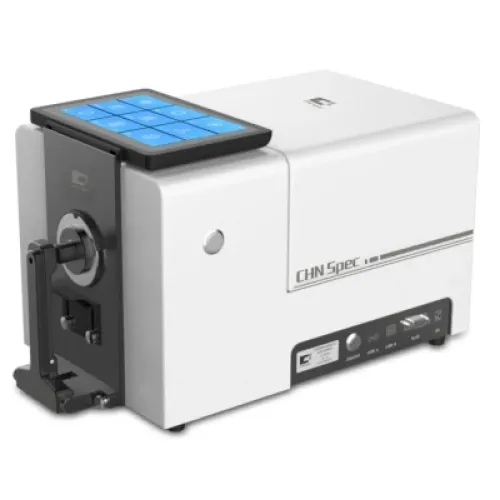

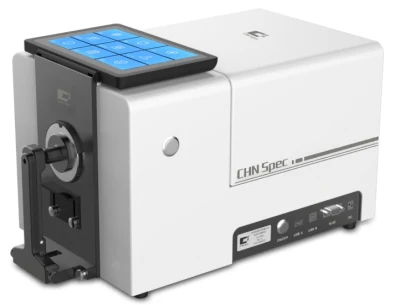

CHNSPEC CS-826高精度桌面分光光度計脈衝XENON LAMP版本有機矽塑料

產品功能
*自動校準
*高穩定性紫外線源，提供穩定的熒光測量結果
*在黑色樣品上測量時出色的可重複性
*與美國，日本和歐洲生產的其他競爭產品一致性
*出色的長期可重複性，即使在環境快速變化之後仍然可以保證出色的可重複性
*24種照明劑和40多種測量指數
*溫度和濕度補償功能
*七英寸觸摸屏，Android操作系統
*雙光路頻譜分析技術
*支持SCI+SCE同時快速測量
*它有兩個燈：脈衝氙氣和LED CHNSPEC CS-826高精度桌面分光光度計脈衝XENON LAMP版本有機矽塑料

Model	CS-826
Illumination/ Viewing System	Reflectance: d/8(Diffused illumination, 8 degree viewing) Simultaneous measurement of SCI/SCE, conform to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 condition C, ASTM E1164,ASTM-D1003-07 Transmittance d/0(Diffused illumination, 0 degree viewing )
Sensor	Dual column high precision CMOS array sensor
Grating method	Concave grating
Sphere diameter	152mm
Wavelength range	360nm-780nm
Wavelength interval	10nm
Half wave width	1nm
Reflectance range resolution	0-200%, resolution 0.01%
Lighting source	Pulsed xenon lamp and LED
UV	Including UV, 400nm cut-off, 420nm cut-off and 460nm cut-off
Test time	SCI or SCE mode < 2 seconds, SCI + SCE simultaneous measurement < 4 seconds
Test aperture	Reflection: xlav Φ 25.4mm/ Φ 30mm LAV Φ 15mm/ Φ 18mm MAV Φ 8mm/ Φ 11mm SAV Φ 3mm/ Φ 6mm The user can customize the caliber, and the caliber switch automatically identifies thetransmission: Φ 17mm/ Φ 25mm
Transmission measurement specification	Sample width and height: unlimited, thickness: ≤ 50mm
Long term repeatability	Xlav chromaticity value: standard deviation Δ E * AB within 0.015 (for any temperature change of 20 ºC± 10 ºC, measure the white correction plate every hour within 24 hours)
Repeatability	Δ E*ab≤0.01, Spectral reflectance / transmittance ≤ 0.1%
Inter-instrument difference	XLAV Δ E * AB 0.2 (based on the average value of 12 color plates of BCRA series at 23 ° C)
Observer	2 ° standard observer and 10 ° standard observer
Light source	A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84
Language	Simplified Chinese, Spanish, Spanish, Spanish, Portuguese, Portuguese
Display	Spectral data, spectrogram, chroma data, color difference data, color difference diagram, pass / fail judgment, simulated color, color evaluation, haze, liquid chroma, color bias
Color space	Lab,LCh,Hunter Lab,Yxy,XYZ
Color index	WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube,Berger Stensby), YI(ASTMD1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),Metamerism index milm, color fastness, color fastness,ISO brightness, R457, a density, t density, e density, m density, APHA / Hazen / Pt Co, Gardner index,Saybolt index, ASTM Color, haze, total transmittance, hiding power, force, strength
Colour-difference formula	ΔEab,ΔECH,ΔEuv,ΔEcmc,ΔE94,ΔE00,ΔEab(Hunter),555 hue classification
Storage space	8GB
Screen	7 inch capacitive touch screen
Operating system	Android
Supply	DC regulated power supply
Working temperature and humidity range	5 ~ 40 ° C, relative humidity below 80% (at 35 ° C), no condensation
Storage temperature and humidity range	-20 ~ 45 ° C, relative humidity below 80% (at 35 ° C), no condensation
