手機號: DS-200

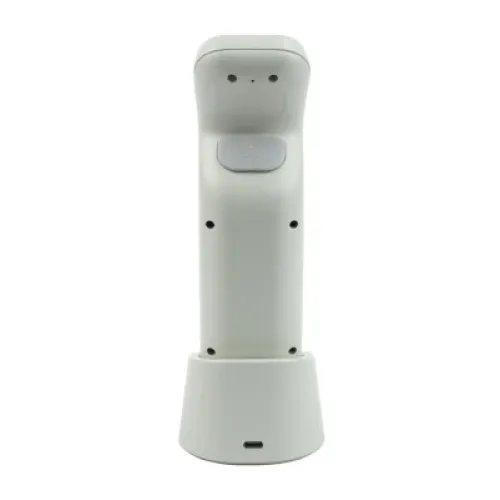

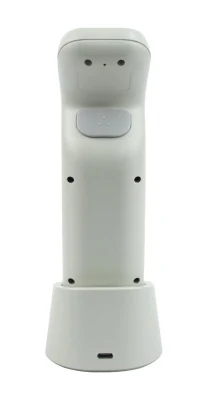

Model: DS-200
Range: 400-700nm
Function: Color Detection
Caliber: There are 2 types in total, stable type and flexible type: Φ6mm, ▽6mm
Measurement Stability: 0.01
Support APP: support

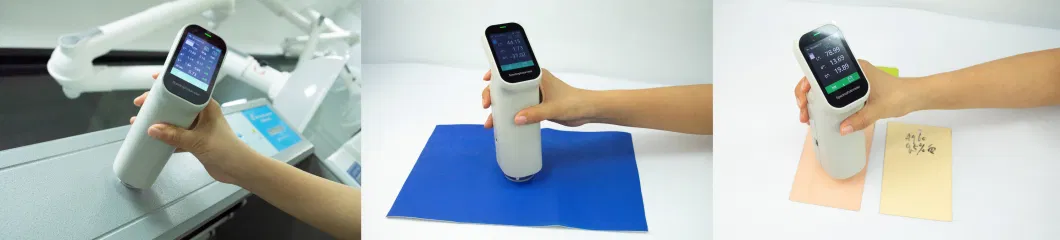

Application Areas: Widely used in color control in plastics, printing, packaging, textiles, clothing and other industries.
Size: 35*35*19.5cm
Weight: 1.65kg
Support PC Software: support
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it
與現有產品相比，使用時DS-200系列分光光度計不需要經常進行手動校準。只需將其放在校準基礎上，該儀器將根據自己的狀態和環境因素自動校準整體儀器功能和準確性，以確保儀器始終處於穩定狀態並準備使用。
產品功能
*雙重路徑設計提高可重複性精度DE *AB≤0.03
*30+測量指標，例如顏色差異，白色和黃色。
*提供近40個評估光源。
*包括紫外線，可用於熒光顏色測量。
*它配備了三個無工具的測量口徑，可以隨時更換。
*內置的高清攝像頭可清楚地觀察經過測試的區域。
*自動校準基礎可確保儀器的長期穩定性。
*支持微信系，Android，Apple和Hongmeng移動應用程序。
*使用功能強大的PC側顏色管理系統colorexpert。
| Product model | DS-200 |
| Measuring structure* | D/8,SCI |
| Measurement repeatability** |
ΔE*ab≤ 0.03 |
| Display accuracy | 0.01 |
| Measuring aperture |
There are 2 stable and agile models in total: Φ6mm,▽6mm |
| Color Spaces and Indices |
Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00, ASTM E313-73), Blackness(My,dM),Color Fastness |
| Source condition | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83, TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
| Light source | LED |
| Measurement observation method |
Visual |
| Calibration | Manual calibration |
| Software support | Andriod,iOS,Windows, Wechat app |
| Guaranteed accuracy | Guaranteed measurement |
| Observer | 2°,10° |
| Integrating sphere diameter |
40mm |
| Standards | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Ways of spectral | Nano-integrated spectral devices |
| Sensor | Silicon photodiode array Dual 16-group |
| Wavelength interval | 10nm |
| Wavelength range | 400-700nm |
| Reflectance determination range | 0-200% |
| Reflectance resolution | 0.01% |
| Measurement method | Single measurement, average measurement (2 to 99 measurements) |
| Measurement time | Approx. 1 second |
| Interface | USB, Bluetooth |
| Screen | Screen Full colour screen, 2.4 |
| Battery capacity | 8000 continuous measurements on a single charge, 3.7V/3000mAh |
| Life of light | 10 years and 1 million cycles |
