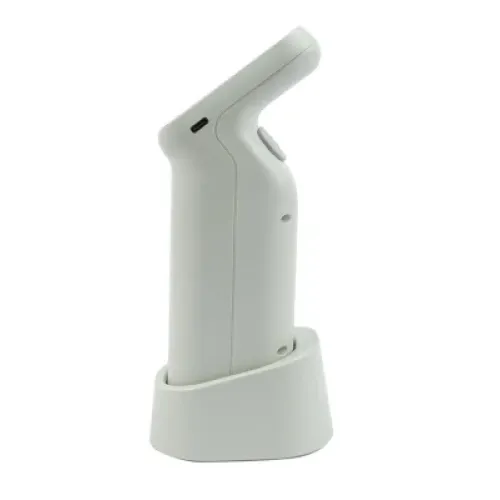

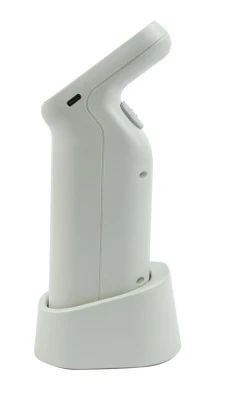

手機號: DS-220
Model: DS-220
Range: 400-700nm
Function: Color Detection
Caliber: 6 types of shakujo type Φ11mm，Φ6mm，Φ3mm 11 mm, 6 mm, 3 mm
Measurement Stability: 0.01
Support APP: support
Support PC Software: support
Application Areas: Widely used in color control in plastics, printing, packaging, textiles, clothing and other industries.
Size: 35*35*19.5cm
Weight: 1.65kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it
Windows Color Management System Colorexpert包含在DS-200系列色彩儀包裝中，可以通過藍牙或USB電纜連接到比色計。
Colorexpert是一個功能齊全的顏色管理軟件，具有四個功能模塊：我的顏色，顏色檢查，顏色匹配系統和個人中心。
產品功能
*雙重路徑設計提高可重複性精度DE *AB≤0.03
*30+測量指標，例如顏色差異，白色和黃色。
*提供近40個評估光源。
*包括紫外線，可用於熒光顏色測量。
*它配備了三個無工具的測量口徑，可以隨時更換。
*內置的高清攝像頭可清楚地觀察經過測試的區域。
*自動校準基礎可確保儀器的長期穩定性。
*支持微信系，Android，Apple和Hongmeng移動應用程序。
*使用功能強大的PC側顏色管理系統colorexpert。
| Product model | DS-220 |
| Measuring structure | D/8,SCI |
| Measurement repeatability |
ΔE*ab≤ 0.03 |
| Display accuracy | 0.01 |
| Measuring aperture |
There are 6 stable and agile models in total: Φ11mm,Φ6mm,Φ3mm ▽11mm,▽6mm,▽3mm |
| Color Spaces and Indices |
Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00, ASTM E313-73), Blackness(My,dM),Color Fastness |
| Source condition | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83, TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
| Light source | LED+UV |
| Measurement observation method |
Camera |
| Calibration | Auto calibration |
| Software support | Andriod,iOS,Windows, Wechat app |
| Guaranteed accuracy | Guaranteed first class measurement |
| Observer | 2°,10° |
| Integrating sphere diameter |
40mm |
| Standards | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Ways of spectral | Nano-integrated spectral devices |
| Sensor | Silicon photodiode array Dual 16-group |
| Wavelength interval | 10nm |
| Wavelength range | 400-700nm |
| Reflectance determination range | 0-200% |
| Reflectance resolution | 0.01% |
| Measurement method | Single measurement, average measurement (2 to 99 measurements) |
| Measurement time | Approx. 1 second |
| Interface | USB, Bluetooth |
| Screen | Screen Full colour screen, 2.4 |
| Battery capacity | 8000 continuous measurements on a single charge, 3.7V/3000mAh |
| Life of light | 10 years and 1 million cycles |
| Language | Simplified Chinese, English |
| Storage | Instrument :10,000 data ; APP: mass storage |
