橡膠行業的便攜著色表

產品内容
包裝和交付
產品描述

產品内容

手機號: DS-210

型號NO.: DS-210

Measurement Repeatability: ΔE*ab≤ 0.03

Display: 0.01

Software Support: Andriod, iOS, Windows, Wechat app

Integrating Sphere: 40mm

Sensor: Silicon photodiode array Dual 16-group

Wavelength Interval: 10nm

Wavelength Range: 400-700nm

Reflectance Determination Range: 0-200%

Reflectance Resolution: 0.01%

Measurement Time: Approx. 1 second

Interface: USB, Bluetooth

Screen: Screen Full colour screen, 2.4

Life Of Light: 10 years and 1 million cycles

Transport Package: Carton

Specification: 35*34*22

Trademark: CHNSpec

Origin: China

HS編碼: 9027300090

After-sales Service: 10 Years

Warranty: 1 Year

Measuring Structure: D/8, SCI

Currency: about shipping cost and estimated delivery time.

包裝和交付

銷售組織:

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

產品描述

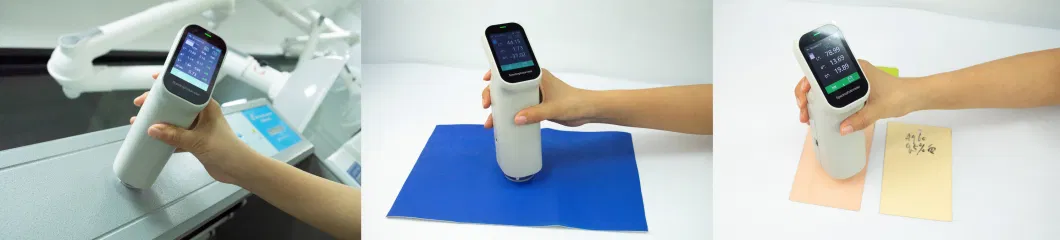

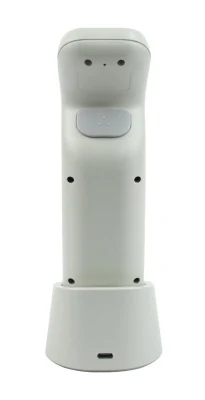

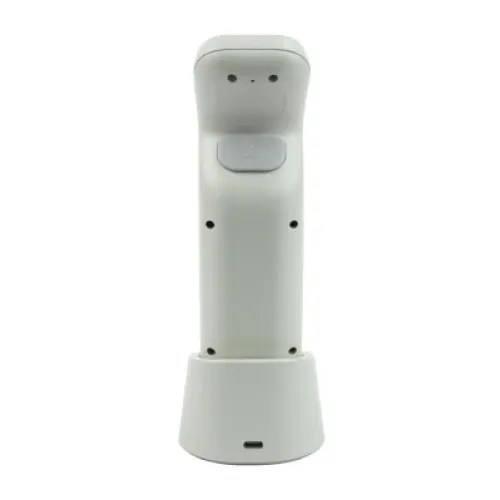

CHNSPEC DS-210橡膠行業的便攜著色表

測量時，DS-200串聯分光光度計可以通過相機獲得測量區域的圖像，該圖像可以清楚地定位樣品的測量面積，並避免由於錯誤的面積而導致的測量不准確。
產品功能
*雙重路徑設計提高可重複性精度DE *AB≤0.03
*30+測量指標，例如顏色差異，白色和黃色。
*提供近40個評估光源。
*包括紫外線，可用於熒光顏色測量。
*它配備了三個無工具的測量口徑，可以隨時更換。
*內置的高清攝像頭可清楚地觀察經過測試的區域。
*自動校準基礎可確保儀器的長期穩定性。
*支持微信系，Android，Apple和Hongmeng移動應用程序。
*使用功能強大的PC側顏色管理系統colorexpert。

Product model	DS-200	DS-210	DS-220
Measuring structure*	D/8,SCI
Measurement repeatability**	ΔE*ab≤ 0.03
Display accuracy	0.01
Measuring aperture	There are 2 stable and agile models in total: Φ6mm,▽6mm	There are 4 stable and agile models in total: Φ11mm,Φ6mm ▽11mm,▽6mm	There are 6 stable and agile models in total: Φ11mm,Φ6mm,Φ3mm ▽11mm,▽6mm,▽3mm
Color Spaces and Indices	Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔEab, ΔEcmc, ΔE94,ΔE00),WI(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00, ASTM E313-73), Blackness(My,dM),Color Fastness
Source condition	A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83, TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
Light source	LED		LED+UV
Measurement observation method	Visual	Camera
Calibration	Manual calibration	Auto calibration
Software support	Andriod,iOS,Windows, Wechat app
Guaranteed accuracy	Guaranteed measurement	Guaranteed first class measurement
Observer	2°,10°
Integrating sphere diameter	40mm
Standards	CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Ways of spectral	Nano-integrated spectral devices
Sensor	Silicon photodiode array Dual 16-group
Wavelength interval	10nm
Wavelength range	400-700nm
Reflectance determination range	0-200%
Reflectance resolution	0.01%
Measurement method	Single measurement, average measurement (2 to 99 measurements)
Measurement time	Approx. 1 second
Interface	USB, Bluetooth
Screen	Screen Full colour screen, 2.4
Battery capacity	8000 continuous measurements on a single charge, 3.7V/3000mAh
Life of light	10 years and 1 million cycles
Language	Simplified Chinese, English
Storage	Instrument :10,000 data ; APP: mass storage
