手機號: DC-25D

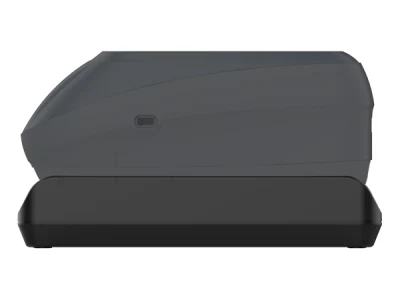

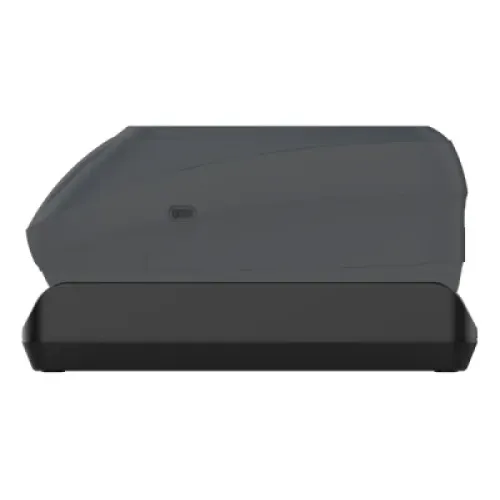

Model: DC-25D
Range: 360-780nm
Measurement Stability: dE*ab≤0.01
Caliber: Φ11mm,Φ10mm, Φ6mm,Φ3mm
支持應用程序: 支持
支持PC軟件: 支持
應用區域: 主要用於顏色檢測材料，例如噴塗，塑料，印刷，金屬，陶瓷，建築材料，皮革，油漆等
Function: color detection
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it
CHNSPEC DC-25D高精度便攜式分光光度計在站點之間的出色性能和可重複性
重複性精度DE*AB≤0.01
Inter-Inter-groment協議DE*AB≤0.12
產品功能
*行業領先的波長范圍：360-780nm
*出色的舞台到階段變化和可重複性
*雙光源系統提供的使用壽命比預期的更長
*支持NetProf網絡校正功能
*提供6個測量孔，以輕鬆測量不同形狀的樣品
*BCRA綠板波長校準
*指示準確性提高了60％
*智能自動校準
| Product model | Spectrophotometer DC-25D |
| Measuring structure | D/8,SCI+SCE |
| Light source life | 10 million times |
| Wavelength range | 360-780nm |
| SCI+SCE Measure simultaneously | support |
| NetProf network calibration | support |
| Calibration method | BCRA certified black and white board energy calibration, green board wavelength accuracy calibration |
| Measurement repeatability | dE*ab≤0.01 |
| Inter-Instrument agreement | dE*ab≤0.2 |
| Display accuracy | 0.01 |
| Lighting source | Full-band balanced LED light source + xenon lamp |
| UV light source | Yes |
| Caliber | Φ11mm,Φ10mm, Φ6mm,Φ3mm |
| Measurement standard | Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73) blackness (My, dM), stain fastness, discoloration Fastness, Tint (ASTM E313-00) color density CMYK (A, T, E, M), metamerism index Milm, Munsell, hiding power, strength (dye strength, tinting strength) |
| Light source conditions | A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
| Observation method | Camera |
| Calibration | Intelligent automatic calibration |
| Software support | Android, iOS, Windows, WeChat applet |
| Accuracy guaranteed | Guarantee first-level measurement qualification |
| Standard observer | 2°,10° |
| Integrating sphere diameter | 40mm |
| Standards | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Spectral method | grating |
| Sensor | Dual column high-precision CMOS array sensor |
| Wavelength interval | 10nm |
| Reflectivity measurement range | 0-200% |
| Reflectance resolution | 0.01% |
| Measuring time | about 1 second |
| Interface | USB, Bluetooth |
| Screen | Full color screen, 3.5 inches |
| Battery capacity | Can continuously measure 8000 times on a single charge, 7.2V/3000mAh |
| Language | Simplified Chinese, English |
| Storage | Instrument: 10,000 items; APP: Mass storage |
| Size | 233mm*77mm*93mm |
| Weight | About 600g |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
港口: Contact salesperson to confirm
