手機號: DS-530
Model: DS-530
Range: 400-700nm
Function: Color density and color detection
Caliber: Φ11mm,Φ10mm,Φ6mm,Φ5mm,Φ3mm
Measurement Stability: dE*ab≤0.02
Support APP: Support
Support PC Software: No
Application Areas: Suitable for the printing and packaging industry, solving the problem of CMYK and spot color quantification, providing quantitative operation guidance for printing machine workers
Size: 35*34.8*20.5cm
Weight: 2.24kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it

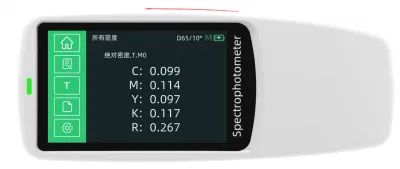

DS 530顏色密度計帶有Windows顏色管理系統ColoreXpert，可以通過藍牙或USB電纜連接到DS 530顏色密度計。 Colorexpert是一個功能齊全的顏色管理軟件，具有四個主要功能模塊：我的顏色，顏色檢測，顏色匹配系統和個人中心。
產品功能
*適用於印刷和包裝行業
*解決CMYK和斑點顏色的顏色量化問題
*為印刷新聞工作人員提供定量操作指南
| Model | DS 530 |
| Measuring structure | 45/0 |
| NetProf network calibration | Support |
| Integrated physical positioning holes | Support |
| Measurement repeatability | dE*ab≤0.02 |
| Display accuracy | 0.01 |
| lighting source | Full-band balanced LED light source |
| UV light source | support |
| Caliber | Φ11mm,Φ10mm,Φ6mm,Φ5mm,Φ3mm |
| Measurement standard | Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTME313-00, ASTME313 -73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBerger Stensby) yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73) blackness (My, dM), stain fastness, color fastness, Tint (ASTM E313-00) Color density CMYK (A, T, E, M), metamerism index Milm, Munsell, hiding power, strength (dye strength, tinting strength) |
| Light source conditions | A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
| Software support | Android, iOS, Windows, WeChat applet, Hongmeng |
| Accuracy guaranteed | Ensure measurement is qualified |
| Field of view | 2°,10° |
| Integrating sphere diameter | 40mm |
| Follow standards | CIENo.15,GB/T3978,GB2893,GB/T18833,ISO7724-1,ASTME1164,DIN5033Teil7 |
| Spectral method | High-precision nano spectroscopic device |
| sensor | Silicon photodiode array dual 16 groups |
| Wavelength interval | 10nm |
| Wavelength range | 400-700nm |
| Reflectivity measurement range | 0-200% |
| Reflectance resolution | 0.01% |
| Measure time | about 1 s |
| Interface | USB, Bluetooth |
| Screen | Full color screen, 3.5 inches |
| Battery capacity | Can continuously measure 8000 times on a single charge, 7.2V/3000mAh |
| Light source life | 5 million times |
| Language | Simplified Chinese, English |
| Storage | Instrument: 10,000 items; APP: Mass storage |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
港口: Contact salesperson to confirm
