手機號: TH-200
| 銷售組織: | Pack/Packs |
The file is encrypted. Please fill in the following information to continue accessing it

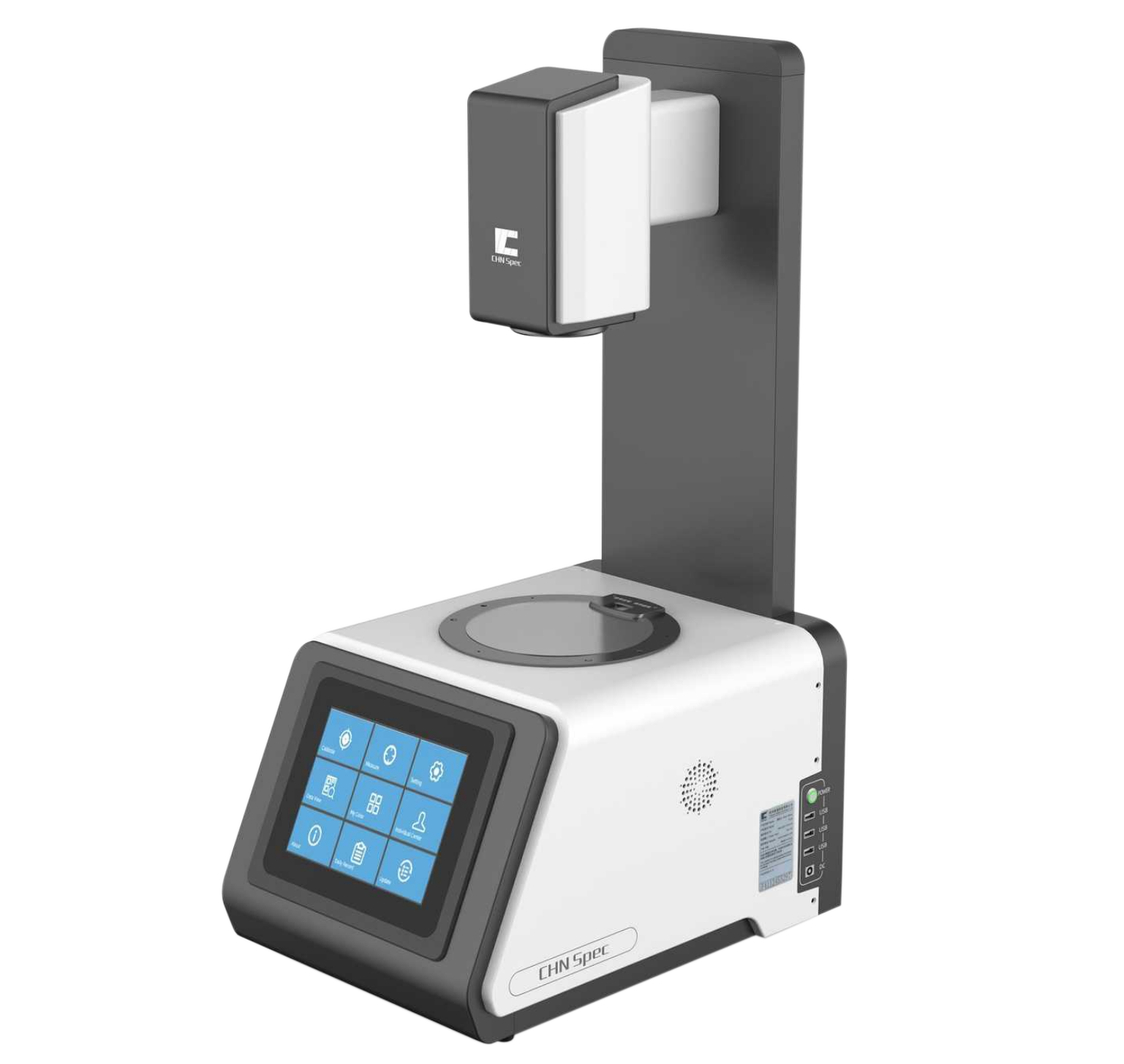

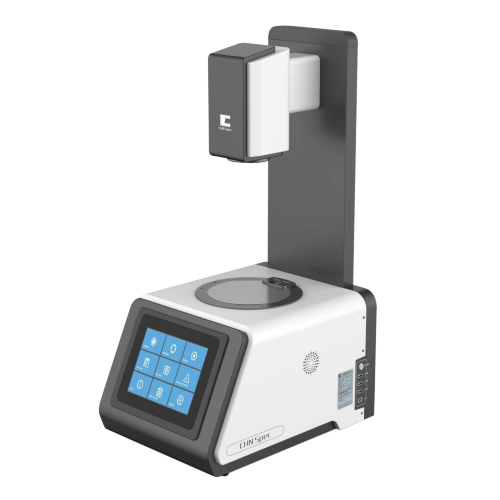

全螢幕 塑料激光焊接 透射率檢測透射成像分析儀TH-200
成像塑料的透射率
塑料激光焊接質量檢查
一次分析整個屏幕的透射率
全屏掃描：焊接塑料部件的光透射率的全方次掃描，並同時檢測多個點以確保全面檢測。
靈活的設置：可以自由定義檢測區域，並且可以設置透射範圍以滿足不同的需求。
自動判斷：自動提取檢查區域的透射率和焊接質量，並準確判斷是否還可以還是NG。
多點測試：適用於樣品的多點測試，以有效避免錯過測試。
易於操作：測試操作很簡單，即使是非專業人士也很容易開始。
非常快：在一秒鐘內完成測量，提高了工作效率。
|
Model |
TH-200 |
|
Wavelength |
850nm, 905nm, 915nm, 940nm, 980nm, any wavelength can be selected |
|
Transmittance range |
0-100% |
|
Single measurement time |
＜0.9 seconds |
|
Measurement repeatability |
0.5% |
|
Measurement accuracy |
0.01% |
|
Maximum measurement size |
150*150mm |
|
Maximum detection distance |
250mm |
|
Calibration method |
Automatic calibration |
|
Measurable parameters |
Multi-point transmittance, maximum value, minimum value, average value, transmittance change curve over time, welding quality inspection |
|
Measurement method |
Vertical irradiation, multi-point comprehensive simultaneous detection |
|
Computer |
Built-in industrial tablet computer |
|
Operating system |
Win10 |
|
Optional accessories |
Calibration certificate |
