手機號: DS-60
Model: DS-60
Range: 400-700nm
Function: color detection
Measurement Stability: dE*ab≤0.02
Caliber: Φ11mm
支持應用程序: 支持
支持PC軟件: 支持
應用區域: 主要用於材料顏色檢測，例如噴塗，塑料，印刷，金屬，陶瓷，建築材料，皮革，油漆等。
Size: 36.0*35.5*20.4cm
Weight: 2.45kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it

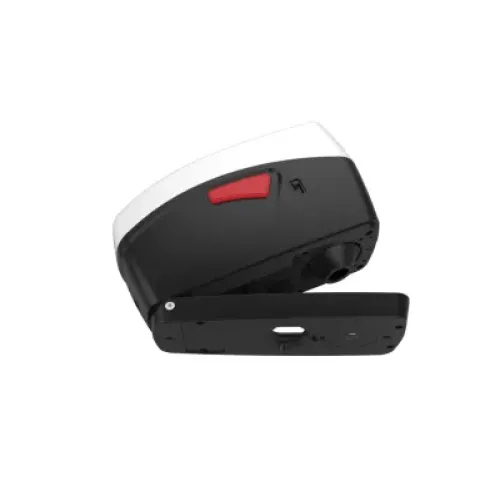

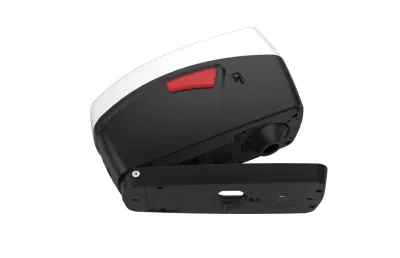

DS60 分光光度計採用低重心中心的水平設計，可以穩定地表面測量表面。在測量過程中，您可以始終遵循觀察窗口檢查測量位置，以避免測量位置誤差。
產品功能
*超高可重複性精度：de*ab≤0.02
*水平壓縮測量，物理定位觀察窗口
*30多個測量參數和近40個評估光源
*該軟件支持微信系，Android，Apple，Hongmeng，Mobile App等，並支持數據同步
| Model | DS60 |
| Measuring structure | D/8,SCI+SCE |
| SCI+SCE simultaneous measurement | Support |
| Integrated physical positioning holes | Support |
| Measurement repeatability | dE*ab≤0.02 |
| Display accuracy | 0.01 |
| Lighting source | Full-band balanced LED light source |
| Caliber | Φ11mm |
| Measurement standard | Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTME313-00, ASTME313 -73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBerger Stensby) yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73) blackness (My, dM), stain fastness, color fastness, Tint (ASTM E313-00) Color density CMYK (A, T, E, M), metamerism index Milm, Munsell, hiding power, strength (dye strength, tinting strength) |
| Light source conditions | A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
| Software support | Android, iOS, Windows, WeChat applet, Hongmeng |
| Accuracy guaranteed | Ensure measurement is qualified |
| Field of view | 2°,10° |
| Integrating sphere diameter | 40mm |
| Follow standards | CIENo.15,GB/T3978,GB2893,GB/T18833,ISO7724-1,ASTME1164,DIN5033Teil7 |
| Spectral method | High-precision nano spectroscopic device |
| Sensor | Silicon photodiode array dual 16 groups |
| Wavelength interval | 10nm |
| Wavelength range | 400-700nm |
| Reflectivity measurement range | 0-200% |
| Reflectance resolution | 0.01% |
| Measure time | about 1 s |
| Interface | USB, Bluetooth |
| Screen | Full color screen, 3.5 inches |
| Battery capacity | Can continuously measure 8000 times on a single charge, 7.2V/3000mAh |
| Light source life | 5 million times |
