手機號: CS-580

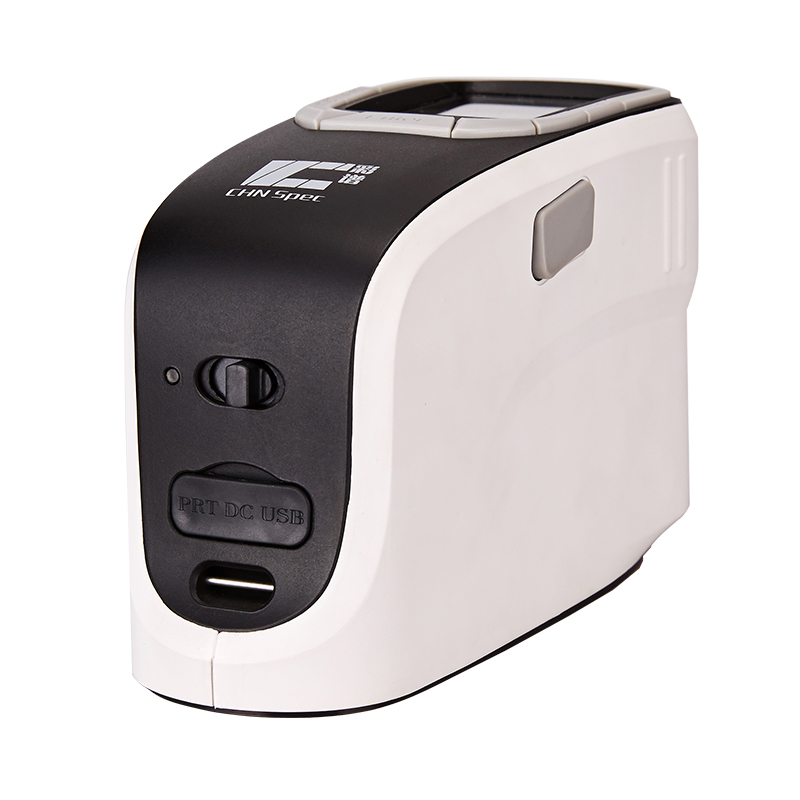

Model: CS-580
Range: 400~700nm
Function: color detection
Measurement Stability: ΔE*ab≤ 0.02
Caliber: Type A: 10mm, Type B: 4mm, 6mm
支持應用程序: 支持
支持PC軟件: 支持
應用區域: 主要用於材料顏色檢測，例如噴塗，塑料，印刷，金屬，陶瓷，建築材料，皮革，油漆等。
Size: 29x25x23cm
Weight: 1.98kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it
| Type | CS-580 |
| Illumination | d/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement。(conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards) |
| Size of integrating sphere | Φ40mm, diffused reflection surface coating |
| Illumination Light source | CLEDs(entire wavelength balanced LED light source) |
| Sensor | dual light path sensor array |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Half spectral width | 5nm |
| Reflectivity range | 0-200% |
| Reflectivity resolution | 0.01% |
| Observation angle | 2°/10° |
| Measurement light source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF |
| Data being displayed | SPD distribution/data,sample's color values,color difference values/graph, pass/fail results, color error tendency, color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report |
| Measurement time interval | 2 seconds |
| Measurement time | 1 second |
| Color space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance |
| Color difference formulas | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 |
| Other colorimetric indices | WI(ASTM E313-10,ASTM E313-73,CIE,ISO2470/R457, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness, Covering power, force,Opacity, color strength |
| Repeatability | light splitting reflectivity:standard deviation within 0.08% color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Maximum:0.05 |
| Test Aperture | Type A: 10mm, Type B: 4mm, 6mm |
| Battery capacity | rechargeable, 10000 continuous tests, 7.4V/6000mAh |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
港口: Contact salesperson to confirm
