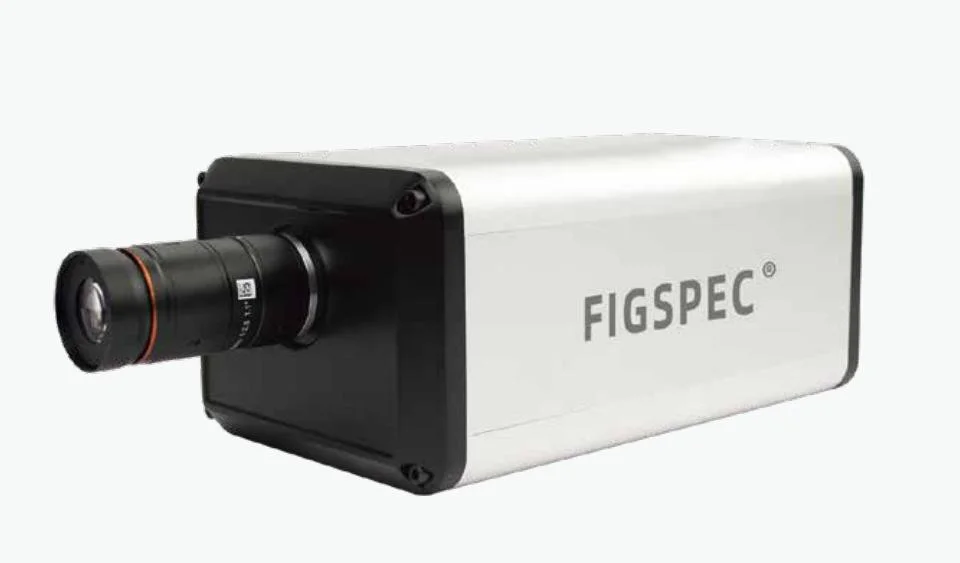

手機號: FS-20
型號NO.: FS20
Spectral Channel Number: 300
Spectral FWHM: 2.5nm
Detector: CMOS
Transmission Efficiency: 60%
Stray Light: 0.5%
Slit Width: 25um
Image Resolution: 1920*1920
Exportation: start
Camera Interface: C-Mount
Attachments: USB3.0 transmission line
ROI: Single area
Pixel Size: 5.86um*5.86um
Transport Package: Carton
Specification: Spectroscopic method: Transmission grating
Trademark: CHNSpec
Origin: China
HS編碼: 9027509090
After-sales Service: 10 Years
Warranty: 1 Year
Spectral Range: 400-1000nm
Currency: about shipping cost and estimated delivery time.
Imaging Speed: <15 seconds
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
|
Model number
|
FS20 |
|
Spectroscopic method
|
Transmission grating
|
|
Spectral range
|
400-1000nm
|
|
Spectral channel number
|
600
|
|
Spectral resolution
|
2.5nm
|
|
Slit width
|
25um
|
|
Transmission efficiency
|
60%
|
|
Stray light
|
0.5%
|
|
Image resolution
|
1920*1920
|
|
Pixel size
|
5.86um*5.86um
|
|
Imaging speed
|
≤15 seconds
|
|
SNR(Peak)
|
600/1
|
|
Camera interface
|
C-Mount
|
|
Attachment
|
Lens, USB cable, power supply
|
|
Dimension
|
Length x width x height:
31.3cmx8.7cmx9.6cm
|
|
Detector
|
CMOS
|
|
Accessories
|
Lens, data cable, power supply, data acquisition card
|
|
Technical Support
|
SDK can be provided to support secondary development
|
