手機號: FS-19M
型號NO.: FS-19M
Spectral Channel Number: 150
Spectral Resolution Of Spectral Camera: Better than 9nm
Slit Width: 25um
Transmission Efficiency: more than 60%
Stray Light: less than 0.5%
Spatial Pixel Number: 640
Pixel Size: 15um
Imaging Speed: 2400fps
Detector Type: InGaAs
SNR(Peak): 600/1
Camera Output: Cameralink
Camera Interface: C-Mount
Field Of View: 62°(8mm focal length lens), 77°(6mm lens)
Lens Focal Length: Standard 8mm (optional 6mm, 12mm, 25mm, 35mm lens
Transport Package: Carton
Specification: 34.4cm*13.6cm*12.2cm
Trademark: CHNSpec
Origin: China
HS編碼: 9027509090
After-sales Service: 10 Years
Warranty: 1 Year
Spectral Camera Spectral Range: 900-1700nm
Currency: about shipping cost and estimated delivery time.
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
| Index | Parameter |
| Spectral range | 900-1700nm |
| Spectral band | 150 |
| Spectral FWHM | <9nm |
| Slit width | 25um |
| Transmission efficiency | >60% |
| Stray light | <0.5% |
| Spatial pixel number | 640 |
| Pixel size | 15um |
| Imaging speed | 2400fps |
| Detector | InGaAs |
| Lens focal length | Standard 8mm (optional 6mm, 12mm, 25mm, 35mm lenses) |
| field of view | 62°(8mm focal length lens), 77°(6mm lens) |
| Camera interface | C-Mount |
| Accessories | Lens, data cable, power supply, data acquisition card |
| Technical Support | SDK can be provided to support secondary development |
| Dimension | Length x width x height :34.4cm*13.6cm*12.2cm |
| Serial number | Content | Serial number | Content |
| 1 | Hyperspectral Camera *1 | 7 | Power cord *1 |
| 2 | White calibration board *1 | 8 | charger*1 |
| 3 | 25mm lens *1 | 9 | Warranty card*1 |

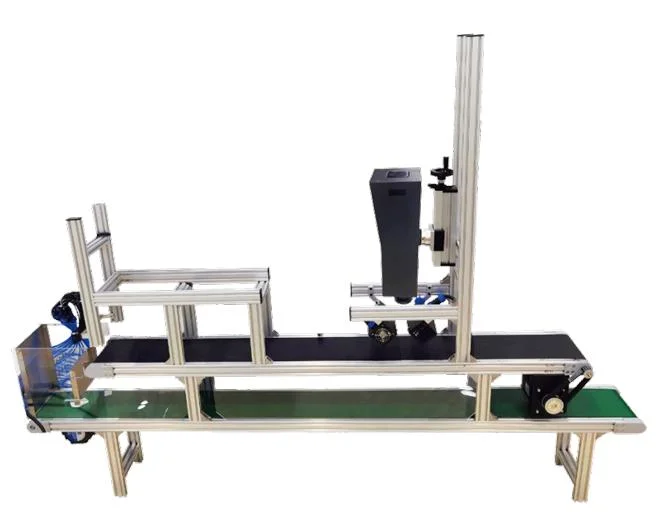

| 4 | Test Bench *optional | 10 | User manual*1 |
| 5 | USB flash drive*1 | ||
| 6 | USB 3.0 data cable*1 |
