手機號: FS-19X
型號NO.: FS-19X
Spectral Channel Number: 100
Spectral Resolution Of Spectral Camera: Better than 13nm
Slit Width: 25um
Transmission Efficiency: more than 60%
Stray Light: less than 0.5%
Spatial Pixel Number: 640
Pixel Size: 15um
Imaging Speed: 3500fps
Detector Type: InGaAs
SNR(Peak): 600/1
Camera Output: Cameralink
Camera Interface: C-Mount
Field Of View: 62°(8mm focal length lens), 77°(6mm lens)
Lens Focal Length: Standard 8mm (optional 6mm, 12mm, 25mm, 35mm lens
Transport Package: Carton
Specification: 34.4cm*13.6cm*12.2cm
Trademark: CHNSpec
Origin: China
HS編碼: 9027509090
After-sales Service: 10 Years
Warranty: 1 Year
Spectral Camera Spectral Range: 900-1700nm
Currency: about shipping cost and estimated delivery time.
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it

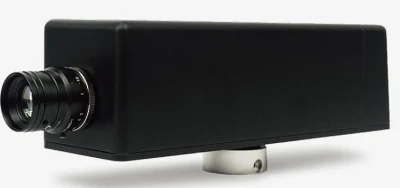

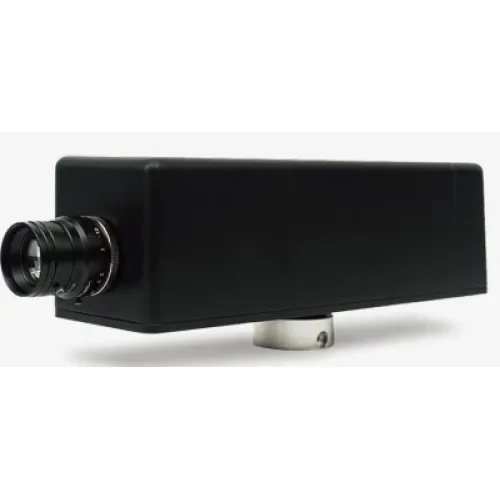

FS-18/19M/19X：用於工業分類的高級線掃描高光譜攝像頭
FS-18/19M/19X系列是我們最新的線掃描高光譜相機系列，精心製作用於工業排序應用。這些相機具有高頻功能滿足工業掃描速度的嚴格需求，這些相機的設計具有強大而緊湊的結構，可在安裝方面具有更大的靈活性。
關鍵功能：
主要應用程序：
FS-18/19M/19X攝像機經過精心設計，可以在各種工業環境中出色，從而確保對各種材料進行精確有效的排序。
| Index | Parameter |
| Spectral range | 900-1700nm |
| Spectral band | 100 |
| Spectral FWHM | <13nm |
| Slit width | 25um |
| Transmission efficiency | >60% |
| Stray light | <0.5% |
| Spatial pixel number | 640 |
| Pixel size | 15um |
| Imaging speed | 3500fps |
| Detector | InGaAs |
| Lens focal length | Standard 8mm (optional 6mm, 12mm, 25mm, 35mm lenses) |
| field of view | 62°(8mm focal length lens), 77°(6mm lens) |
| Camera interface | C-Mount |
| Accessories | Lens, data cable, power supply, data acquisition card |
| Technical Support | SDK can be provided to support secondary development |
| Dimension | Length x width x height :34.4cm*13.6cm*12.2cm |
| Serial number | Content | Serial number | Content |
| 1 | Hyperspectral Camera *1 | 7 | Power cord *1 |
| 2 | White calibration board *1 | 8 | charger*1 |
| 3 | 25mm lens *1 | 9 | Warranty card*1 |

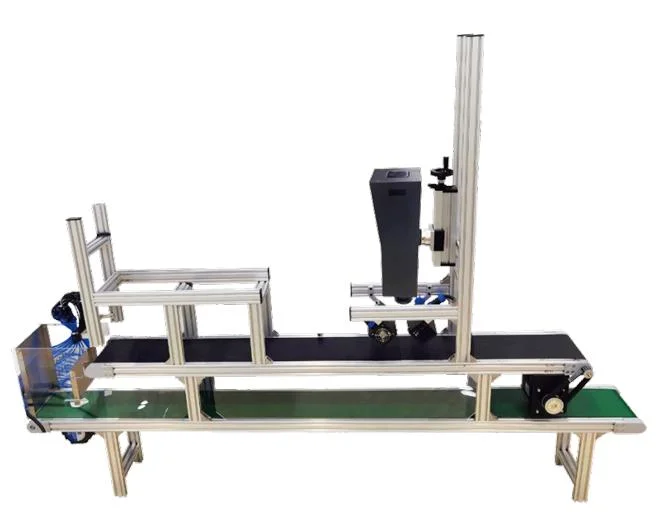

| 4 | Test Bench *optional | 10 | User manual*1 |
| 5 | USB flash drive*1 | ||
| 6 | USB 3.0 data cable*1 |
