手機號: FS-60
型號NO.: FS-60C
Spectral Resolution Of Spectral Camera: Better than 2.5nm
Spectral Channel Number: 1200
Slit Width: 25um
Transmission Efficiency: more than 60%
Stray Light: less than 0.5%
Number Of Spatial Pixels: 1920
Pixel Size: 5.86um
Imaging Speed: Full band 128Hz, after ROI can achieve 3300Hz
Probe: CMOS
Camera Interface: C-Mount
ROI: Multiple regions
Transport Package: Carton
Specification: PTZ working hours: 40min
Trademark: CHNSpec
Origin: China
HS編碼: 9027509090
After-sales Service: 10 Years
Warranty: 1 Year
Spectral Camera Spectral Range: 400-1000nm
Currency: about shipping cost and estimated delivery time.
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
產品功能

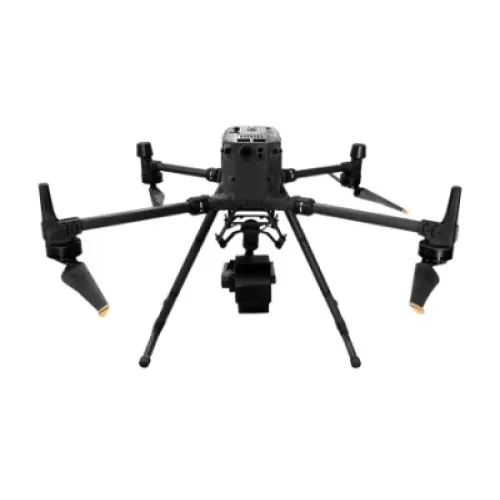

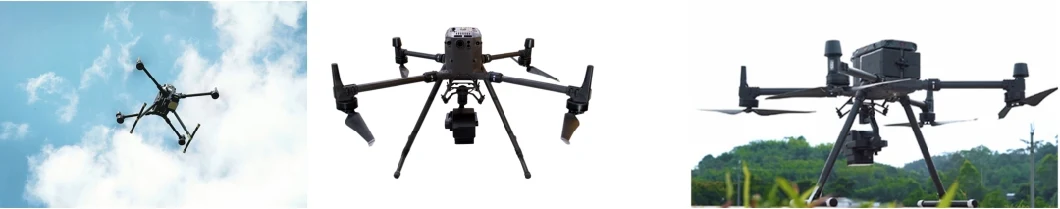

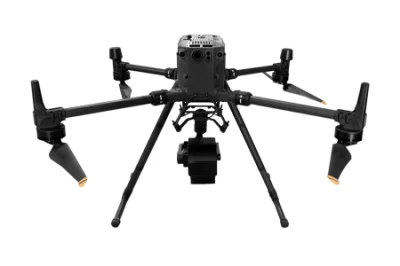

飛行軸承平台：利用DJI M350RTK作為可靠性能的飛行軸承平台。
超高速度頻譜掃描：具有高速度光譜掃描成像設備，具有高信噪比，從而確保了光譜圖像採集的高穩定性。
有效的圖像處理：具有低功耗的自發，高效的圖像處理算法會大大延長飛行時間並減少系統功耗。
實時測量：能夠實時測量來自植物，水體，土壤和其他地面物體的光譜圖像信息。適用於精確農業，農作物生長和產量評估，森林害蟲和防火監測，海岸線和海洋環境監測，湖泊和流域環境監測，礦物勘探等的理想選擇。
緊湊型系統設計：系統的緊湊型設計包括一個成像光譜儀，光譜分辨率高達2.5nm。
完整的系統組件：整個機器由高穩定頭，高光譜成像儀，嵌入式數據獲取，處理和存儲單元，無線圖像傳輸系統，GPS-RTK導航系統，地面接收工作站，地面控制系統以及反射率校準板。
用戶友好的操作：易於操作，不需要專業的無人機操作員進行單個操作。
地面站功能：地面站可以實時觀察飛機的採樣位點，並為路由數據預覽和校正提供功能，包括輻射校正，反射率校正以及批處理處理支持的面積校正。
植被指數計算：支持實時通用植被指數計算。
自定義分析模型輸入：允許輸入自定義實時分析模型。
Envi兼容性：與多種數據格式完全兼容，確保與Envi軟件無縫集成。
| Index | Parameter |
| Spectral range | 400-1000nm |
| Spectral channel number | 1200 |
| Spectral resolution (FWHM) | 2.5nm |
| Slit width | 25um |
| Number of spatial pixels | 1920 |
| Pixel size | 5.86 um |
| Imaging speed | Full band 128Hz, after ROI can achieve 3300Hz |
| probe | CMOS |
| Signal-to-noise ratio | 600/1 |
| Camera interface | C-Mount |
| Camera output | USB3.0 or Gigabit network |
| ROI | Multiple regions |
| Processing storage unit | Embedded processor 512GSSD storage |
| dimension | 20.5 cmx18.5 cmx12.9 cm |
| weight | 1200g |
| Power dissipation | 40W |
| Serial number | Content | Serial number | Content |
| 1 | Camera host *1 | 7 | Packing List *1 |
| 2 | Adapter 12V 3A *1 | 8 | Reflectivity Board*1 |
| 3 | HDMI high-definition cable 0.5 meters *1 | 9 | Reflectivity Cloth*1 |
| 4 | Standard lens *1 | ||
| 5 | USB flash drive*1 | ||
| 6 | Certificate of Conformity & Warranty Card*1 |
