手機號: FS-19X
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it

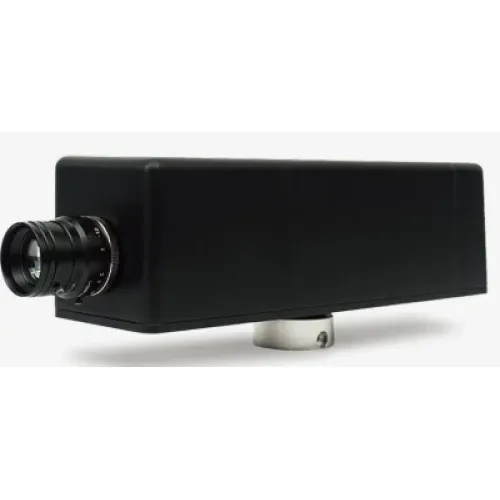

FS-18/19M/19X：用於工業分類的高級線掃描高光譜攝像頭
引入FS-18/19M/19X系列，我們最新的線掃描高光譜攝像頭精心製作，用於工業排序應用。這些相機設計為滿足工業掃描速度的嚴格需求，具有高頻功能，設計具有堅固，緊湊的結構，可提高安裝靈活性。
關鍵功能：
主要應用程序：
FS-18/19M/19X攝像機經過精心設計，可以在各種工業環境中出色，可確保針對廣泛的材料進行精確有效的排序。
| Index | Parameter |
| Spectral range | 900-1700nm |
| Spectral band | 100 |
| Spectral FWHM | <13nm |
| Slit width | 25um |
| Transmission efficiency | >60% |
| Stray light | <0.5% |
| Spatial pixel number | 640 |
| Pixel size | 15um |
| Imaging speed | 3500fps |
| Detector | InGaAs |
| Lens focal length | Standard 8mm (optional 6mm, 12mm, 25mm, 35mm lenses) |
| field of view | 62°(8mm focal length lens), 77°(6mm lens) |
| Camera interface | C-Mount |
| Accessories | Lens, data cable, power supply, data acquisition card |
| Technical Support | SDK can be provided to support secondary development |
| Dimension | Length x width x height :34.4cm*13.6cm*12.2cm |
