手機號: FS-23
型號NO.: FS-23
Spectral Channel Number: 1200
Spectral Resolution Of Spectral Camera: Better than 2.5nm
Slit Width: 25um
Transmission Efficiency: more than 60%
Stray Light: less than 0.5%
Image Resolution: 1920*1920
Pixel Size: 5.86um*5.86um
Imaging Speed: less than 5 seconds
Detector Type: CMOS
SNR(Peak): 600/1
Camera Output: USB3.0
Camera Interface: C-Mount
Accessories: USB3.0 transmission line
ROI: Multi area
Transport Package: Carton
Specification: 25.5cm*13.8cm*10.7cm
Trademark: CHNSpec
Origin: China
HS編碼: 9027509090
After-sales Service: 10 Years
Warranty: 1 Year
Spectral Camera Spectral Range: 400-1000nm
Currency: about shipping cost and estimated delivery time.
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it

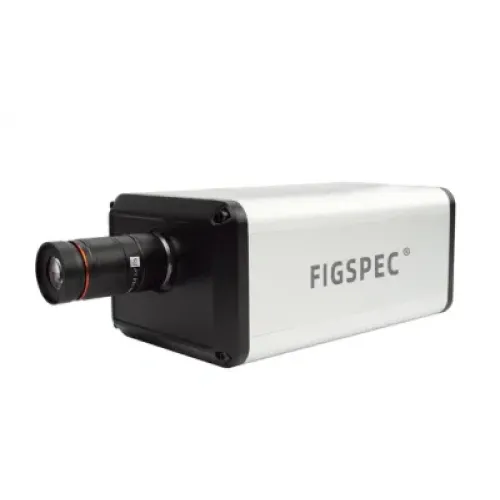

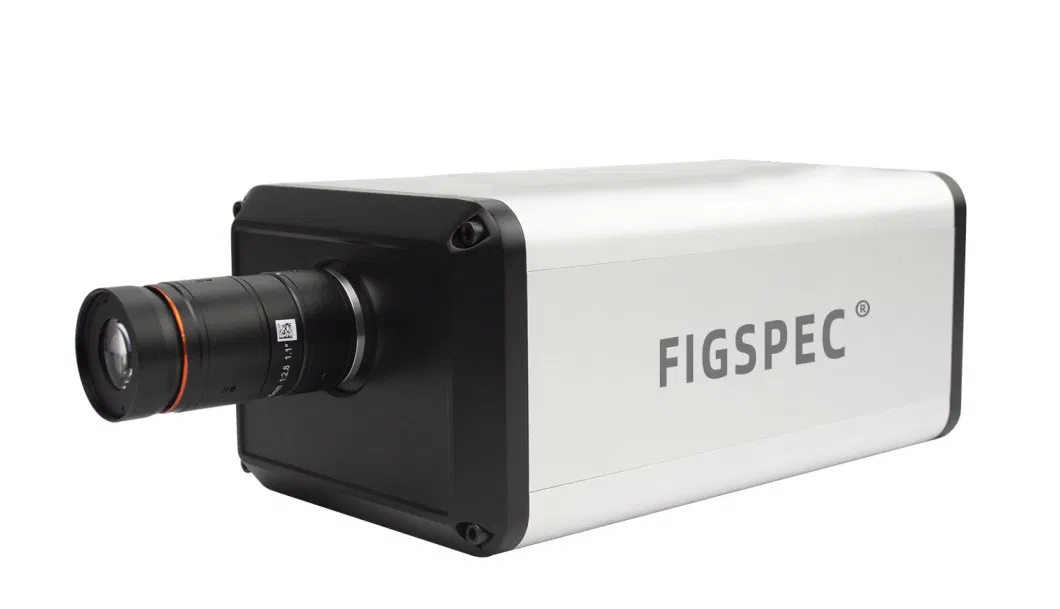

FigSpec®系列的成像高光譜攝像機利用具有高衍射效率和高靈敏度表面陣列攝像頭的變速器光柵分離器模塊。結合內置掃描成像和輔助相機技術，這些相機應對傳統高光譜攝像機的挑戰，例如外部推動掃描成像機制和復雜的聚焦要求。它們可以直接與標準C安裝成像透鏡或顯微鏡進行快速頻譜圖像採集。
主要應用程序：
| Index | Parameter |
| Image resolution | 1920*1920 |
| Dynamic range | 12 bits |
| Imaging speed | ≤5 seconds |
| Spectral channels number | 1200 |
| Spectral region | 400-1000nm |
| Spectral FWHM | 2.5nm |
| Pixel size | 5.86um*5.86um |
| Detector type | CMOS |
| Auxiliary imaging features | Auxiliary framing camera to monitor the shooting area |
| Detector | CMOS |
| Sensor imaging surface size | 11.3*7.1mm |
| Standard lens focal length | 25mm |
| Minimum working distance | 100mm-∞ |
| Field angle | 25° |
| Minimum exposure time | 21us |
| Maximum exposure time | 10 seconds |
| Data interface | USB3.0 |
| Camera lens interface | C-Mount |
| Accessories | USB3.0 transmission line |
| Imaging features | With ROI function Multi area ROI can be achieved |
| Weight** | Less than 2.8KG |
| Host engine size * | 25.5cm*13.8cm*10.7cm |
