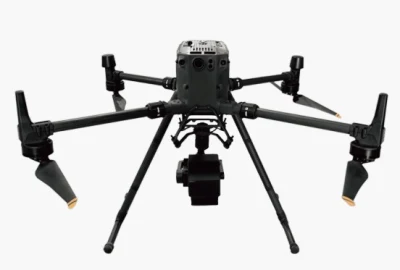

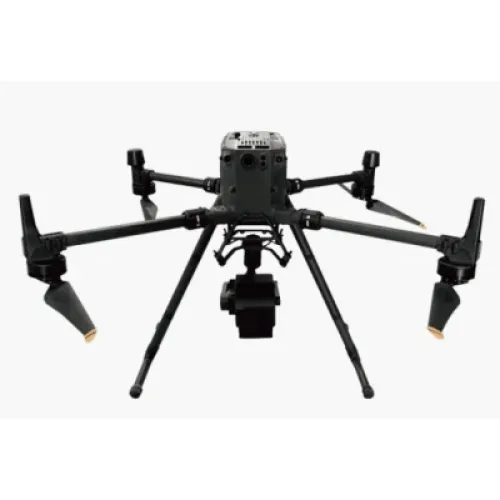

| Product name | Hyperspectral Lidar measurement system |
| System measurement accuracy | 5cm |
| Distance | 300mm |
| Scan the Angle of view | 40.3°(vertical)*360°(horizontal) |
| Dot frequency | 640,000 points/second (single echo) 1.28 million points/second (double echo) 1.92 million points/second (triple echo) |
| Built-in camera pixel | 26 million (6252*4168) |
| Lens focal length | 16mm |
| Main engine weight | 1KG |
| Operating temperature | -20℃~+50℃ |
| Storage temperature | -20℃~+65℃ |
| Class of protection | IP64 |
| Storage capacity | 512GB internal storage / 512GB extended storage |
| Data copy mode | Type-C |
| Mount interface | DJI Skyport interface |
| Flying platform | M300/M350 RTK |
| Control mode | Support key start acquisition, including power supply and data acquisition |
| Remote control | Support remote control APP control device work |
| Data copy speed | Max 300M/s |
| Storage mode | Built-in storage and TF card storage |
| Equipment control software | M300/M350 UAV remote control integrated control software |
| Software | Acquisition software, splicing software and analysis software |
| Lighting mode | Passive lighting (without light source) |
| Spectroscopic method | Transmission grating |
| Spectral range | 400-1000nm |
| Spectral band | 1200 |
| Spectral resolution (FWHM) | 2.5nm |
| Slit width | 25um |
| Transmission efficiency | >60% |
| Stray light | ＜0.5% |
| Number of spatial pixels | Max. 1920 (software configurable) |
| Pixel size | 5.86um |
| Imaging speed | Full band 128Hz |
| Probe | CMOS |
| Signal-to-noise ratio | 600/1 |
| Camera output | USB3.0 or Gigabit network |
| Camera interface | C-Mount |
| Attachment | USB3.0 transmission line or Gigabit network transmission line |
| ROI | Multiple regions |
| Embedded data acquisition processing storage unit | Embedded processor 512GSSD storage |
| Dimension | 20.5cmx18.5cmx12.9cm |
| Weight | 1200g |
| Power dissipation | 40W |
