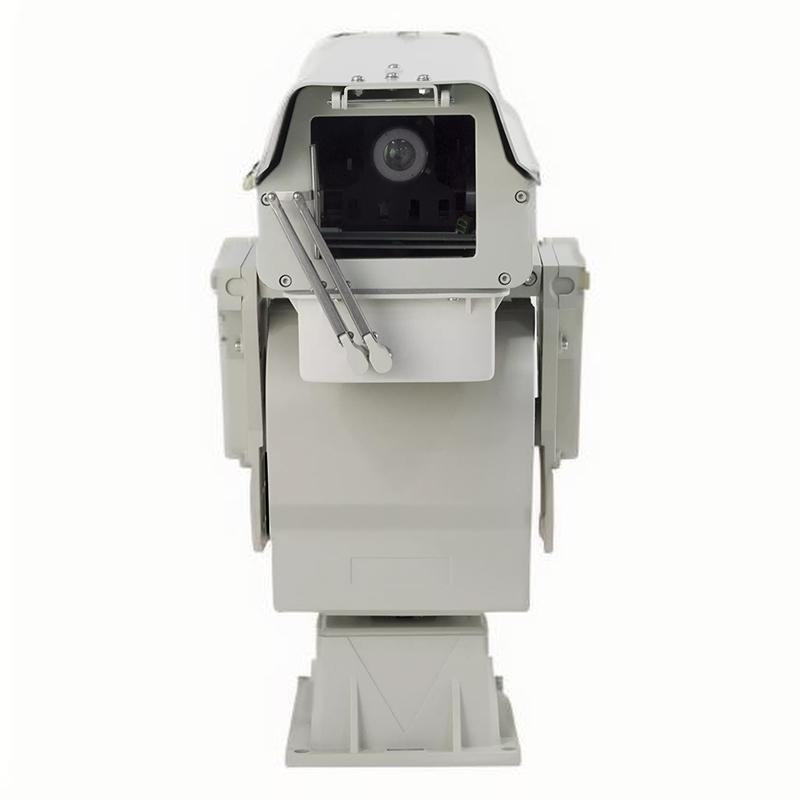

手機號: PTZ Hyperspectral Measurement System
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
| Hyperspectral camera | |
| Spectroscopic method | grating |
| Image resolution | 1920*1920 |
| Dynamic range | 12 bits |
| Spectral channel number | 1200 |
| Spectral range | 390-1010nm |
| Spectral resolution | 2.5nm |
| Slit width | 25um |
| Transmission efficiency | ≥60% |
| Stray light level | ≤0.5% |
| Pixel size | 5.86um*5.86um |
| Detector type | CMOS |
| Standard lens focal length | 12mm，16mm，25mm，35mm，50mm optional |
| Minimum working distance | 100mm |
| Field Angle | 25° |
| Minimum exposure time | 21us |
| Maximum exposure time | 10s |
| Signal-to-noise ratio | 600/1 |
| Camera lens interface | C/EF |
| Imaging function | There are ROI capabilities that can achieve ROI for a single region |
| Auxiliary imaging function | The auxiliary view camera monitors the shooting area |
| Sensor imaging surface dimensions | 11.3*7.1mm |
| PTZ | |
| Horizontal range | Horizontal 360° |
| Vertical range | -90°~+90° |
| Cruise scan mode | Preset point, auto scan, Frame scan, panoramic scan |
| Network | |
| Client-side | Support wins10 and above systems |
| Support protocol | IPv4/IPv6, HTTP, HTTPS |
| Interface protocol | FIGSPEC SDK |
| Port | |
| Port | USB3.0/1000M Network interface |
| General norm | |
| Operating temperature and humidity | -20°C~+40°C; Humidity less than 80% |
