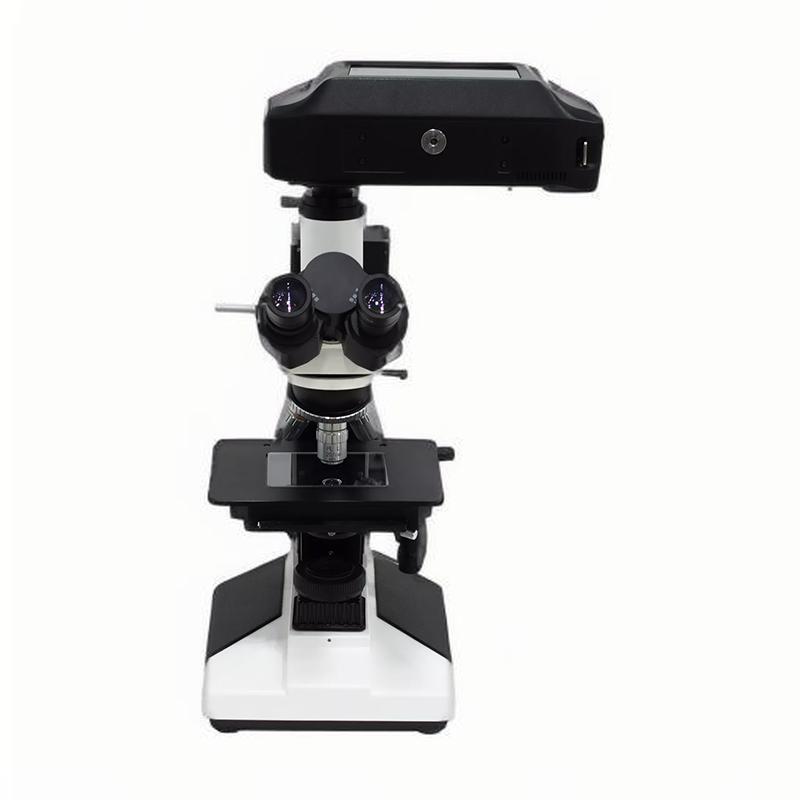

手機號: Microscope Hyperspectral Measurement System
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
| Model | Microscope hyperspectral measurement system |
| Spectroscopic splitting method | Transmission grating light splitting |
| Image resolution | 1920*1920 |
| Dynamic range | 12 bits |
| Imaging speed | 5 seconds |
| Number of spectral channels | 1200 |
| Spectral range | 400-1000nm |
| Spectral FWHM | 2.5nm |
| Slit width | 25um |
| Transmission efficiency | ≥60% |
| Stray light level | ≤0.5% |
| Pixel size | 5.86um*5.86um |
| Detector type | CMOS |
| Standard lens focal length | 25mm |
| Minimum working distance | 100mm |
| Field angle | 25° |
| Minimum exposure time | 21us |
| Maximum exposure time | 10s |
| Signal-to-noise ratio | 600/1 |
| Data interface | USB3.0 |
| Camera lens interface | C |
| Parts | USB3.0 Transmission line |
| Auxiliary imaging function | The auxiliary view camera monitors the shooting area |
| Eyepiece | Large Field of view WF10X(Φ18mm) |
| Objective lens |
Long anomaly field achromatic objective (glass without cover) PL 5X/0.12
Long anomaly field achromatic objective (glass without cover) PL L10X/0.25
Long anomaly field achromatic objective (glass without cover) PL L40X/0.60
Long anomaly field achromatic objective (glass without cover) cover) PL L60X/0.75 (spring)
|
| Eyepiece tube | Triocular, tilted 30˚,( 63709349,built-in polarizer, can be switched) |
| Episcopic illumination system | 6V 20W halogen lamp with adjustable brightness Fall illuminator with field light bar, aperture light bar, polarizer,( 63709350,yellow, blue, green) color filter and frosted glass |
| Focusing mechanism | Coarse-adjustable coaxial focusing, coarse-adjustable cell value:2μm,coarse-adjustable elastic, with locking and limiting device |
| Converter | Four holes (inward ball positioning) |
| Stage | Double-layer mechanical mobile (size:185mmX140mm, moving range:75mmX50mm) |
