手機號: DS-1100

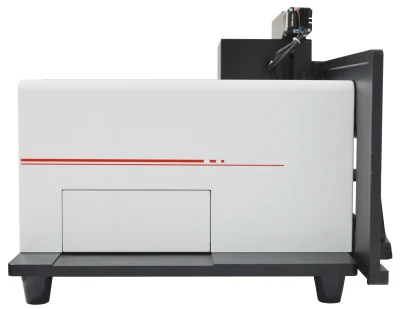

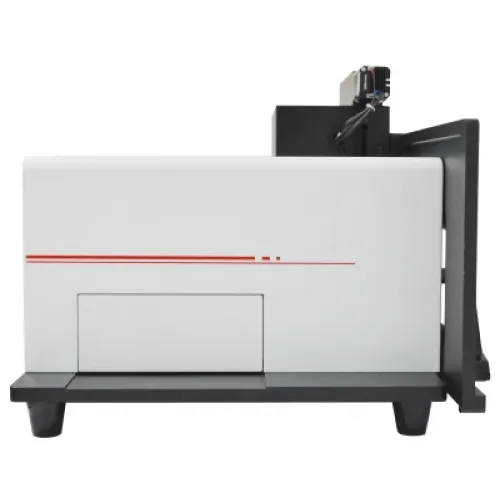

Model: DS-1100
Range: 400nm-1000nm
Function: color detection
Caliber: LAV (30mm illumination, 25mm measurement), users can set the measurement area and customize any size aperture
Measurement Stability: ΔE*ab≤0.01
Support APP: No
支持PC軟件: 支持
Application Areas: DigiSpec ® Series image spectrophotometer can be applied to almost all color measurement fields Textile industry: yarn, printing, lace, zipper, embroidery, etc Construction industry: Rock colored paint, real stone paint, etc Printing industry
Size: 63*43*44cm
Weight: 17.2kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it
儀器優勢
* DigSpec® 串聯圖像分光光度計是高級模型，可用於測量來自不同行業的大多數樣本。
* DIGSPEC®可以獲得圖像的每個顏色和反射率，最小點可以達到0.0016 mm 2 （0.04mm*0.04mm）。
*可重複性DEAB≤0.01（最大），DIGSPEC®可以達到最大重複性DEAB≤0.01，無論它是測量白色瓷磚還是黑色腔，這是基準分光光度計的新標準。
*採用LED或脈衝氙燈作為光源，以確保傳統顏色分光光度計的可追溯性數據一致性。
*完美的校準結構和算法提供了完全可靠的短期和長期測量可重複性
*20+類型的照明劑，30多種索引，SCI/SCE測試模式。它涵蓋了傳統分光光度計的所有功能，並且可以提供與傳統分光光度計相同的參數和測量條件。
| Model | DS-1100 |
| Geometry | Dual beam D / 8 ° , SCI / SCE |
| Light source | High precision analog fluorescent xenon lamp light source |
| Sphere diameter | 152mm/6in |
| Wavelength range |
400nm-1000nm |
| Reporting interval | 2.5nm |
| Photometric range | 0-200%, resolution 0.01% |
|
Repeated measurement of 30 times of double flash White color difference (CIE LAB) |
ΔE*ab≤0.01(Maximum) |
|
Inter-Instrument consistency for |
0.25 |
| Aperture plate | Lav (30mm lighting, 25mm measurement), the user can set the measurement area and customize the caliber of any size |
| Test conditions |
Compliance with standards:CIE No.15,GB/T 3978,GB 2893GB/T 18833,ISO7724/1,DIN5033 Teil7, JIS Z8722 condition C,ASTM E1164,ASTM-D1003-07 |
| Sensor |
Silicon based metal oxide image sensor |
| Spectroscopic modes | Ultra high precision holographic transmission volume grating |
| Image resolution | 600dpi(Ultra high resolution) |
| Minimum measurement area | better than 0.0016mm² (0.04*0.04mm) |
| Observer | 2 ° standard observer and 10 ° standard observer |
| light source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84 |
| Color space | L*a*b,L*C*h,Hunter Lab,Yxy,XYZ |
| Color index |
WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube,Berger Stensby), Color fastness, ISO brightness, R457, a density, t density, e density, m density, hiding power, strength |
| Colour-difference formula | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555 hue classification |
| Test time | Less than 5 seconds |
| Working temperature and humidity | 5 ~ 40 ° C, no condensation below 80% relative humidity (at 35 ° C) |
| Storage temperature and humidity | -20 ~ 45 ° C, no condensation below 80% relative humidity (at 35 ° C) |
| Accessories | Power adapter, data cable, whiteboard |
| Interface | USB 3.0 |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
HS編碼: 9027300090
港口: Contact salesperson to confirm
