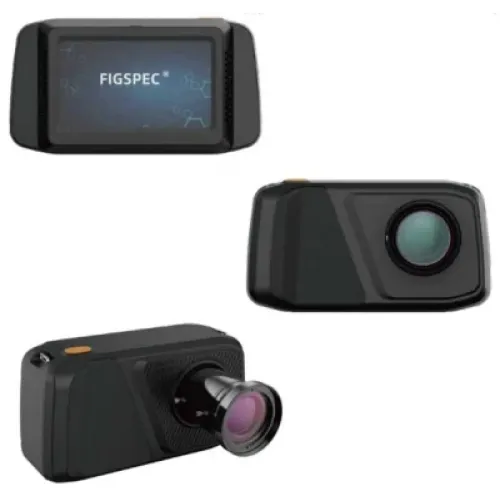

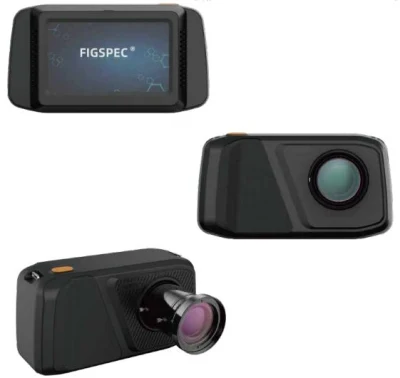

手機號: FS-IQ-SWIR Portable Hyperspectral Camera
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
|
Model number
|
FS-IQ-VIS |
FS-IQ-VISNIR |
FS-IQ-SWIR |
|
Spectroscopic method
|
Transmission grating spectroscopy
|
Transmission grating spectroscopy
|
Transmission grating spectroscopy
|
|
Image resolution
|
1920*1920 |
1920*1920 |
1280*1280 |
|
Dynamic range
|
12 bits |
12 bits |
12 bits |
|
Imaging speed
|
5 |
5 |
5 |
|
Spectral channel number
|
500 |
1200 |
1024 |
|
Spectral range
|
400-700nm |
400-1000nm |
900-1700nm |
|
Optical harmonic resolution
|
2.5nm |
2.5nm |
6nm |
|
Slit width
|
25um |
25um |
25um |
|
Transmission efficiency
|
≥60% |
≥60% |
≥60% |
|
Stray light level
|
≤0.5% |
≤0.5% |
≤0.5% |
|
Pixel size
|
5.86um*5.86um |
5.86um*5.86um |
5um*5um |
|
Detector type
|
CMOS |
CMOS |
InGaAs |
|
Standard lens focal length
|
25mm |
25mm |
25 mm |
|
Minimum working distance
|
100mm |
100mm |
100mm |
|
Field Angle
|
25° |
25° |
17° |
|
Minimum exposure time
|
21us |
21us |
1us |
|
Maximum exposure time
|
10 |
10 |
10 |
|
Signal-to-noise ratio
|
600/1 |
600/1 |
600/1 |
|
Data interface
|
USB3.0 |
USB3.0 |
USB3.0 |
|
Camera lens interface
|
C | C | C |
|
Attachment
|
USB3.0 transmission line
|
USB3.0 transmission line
|
USB3.0 transmission line
|
|
Auxiliary imaging function
|

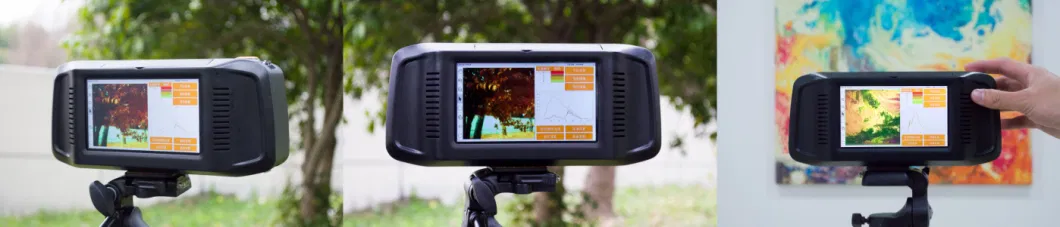

The auxiliary view camera monitors the shooting area
|
The auxiliary view camera
monitors the shooting area
|
The auxiliary view camera
monitors the shooting area
|
