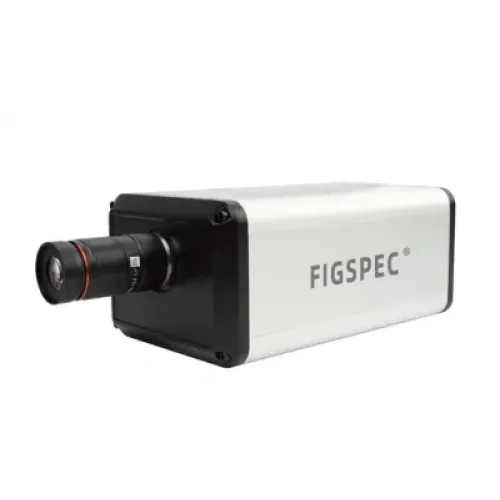

成像高光譜攝像機FS-20
成像高光譜攝像機FS-20
成像高光譜攝像機FS-20
成像高光譜攝像機FS-20

成像高光譜攝像機FS-20

最小訂單:1 Piece/Pieces

  • 產品内容
  • 包裝和交付
  • 產品描述
產品内容

手機號FS-20

型號NO.FS-20

Spectral Channel Number600

Spectral Resolution Of Spectral CameraBetter than 2.5nm

Slit Width25um

Transmission Efficiencymore than 60%

Stray Lightless than 0.5%

Image Resolution1920*1920

Pixel Size5.86um*5.86um

Imaging Speedless than 15 seconds

Detector TypeCMOS

SNR(Peak)600/1

Camera OutputUSB3.0

Camera InterfaceC-Mount

AccessoriesUSB3.0 transmission line

ROISingle area

Transport PackageCarton

Specification25.5cm*13.8cm*10.7cm

TrademarkCHNSpec

OriginChina

HS編碼9027509090

After-sales Service10 Years

Warranty1 Year

Spectral Camera Spectral Range400-700nm

Currencyabout shipping cost and estimated delivery time.

包裝和交付
銷售組織: Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

產品描述

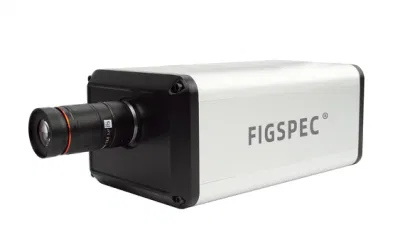

FIGSPEC FS-20高速,穩定和便攜式高光譜成像攝像頭用於戶外使用
FigSpec®系列成像高光譜相機採用具有高衍射效率和高靈敏度表面陣列攝像機的傳輸格分型模塊,並結合內置掃描成像和輔助攝像機技術,這解決了傳統高光譜攝像機的困難問題,例如外部推動掃描成像機制和復雜的焦點。它可以直接與標準C界面成像透鏡或顯微鏡集成,以實現快速的光譜圖像採集。

主要申請
屏幕檢測
水果檢測
蔬菜檢測
植物害蟲和疾病檢測
•水質檢測
•考古學
•氣體檢測
•建築檢查
•等等

FIGSPEC FS-20高速,穩定和便攜式高光譜成像攝像頭用於戶外使用
Serial number Index Parameter
1 Image resolution 1920*1920
2 Dynamic range 12 bits
3 Imaging speed ≤15 seconds
4 Spectral channels number 600
5 Spectral region 400-700nm
6 Spectral FWHM 2.5nm
7 Pixel size 5.86um*5.86um
8 Detector type CMOS
9 Auxiliary imaging features Auxiliary framing camera to monitor the shooting area
10 Detector CMOS
11 Sensor imaging surface size 11.3*7.1mm
12 Standard lens focal length 25mm
13 Minimum working distance 100mm-∞
14 Field angle 25°
15 Minimum exposure time 34us
16 Maximum exposure time 10 seconds
17 Data interface USB3.0
18 Camera lens interface C-Mount
13 Accessories USB3.0 transmission line
14 Imaging features With ROI function Single area ROI can be achieved
15 Weight** Less than 2.8KG
16 Host engine size * 25.5cm*13.8cm*10.7cm


Serial number Content Serial number Content
1 Hyperspectral Camera *1 7 User manual*1
2 White calibration board  *1 8 charger*1
3 25mm lens *1  9 Warranty card*1
4 Power cord *1
5 USB flash drive*1
6 USB 3.0 data cable*1
