手機號: DS-812N

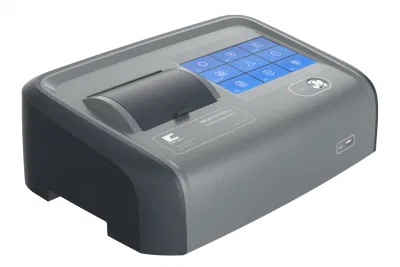

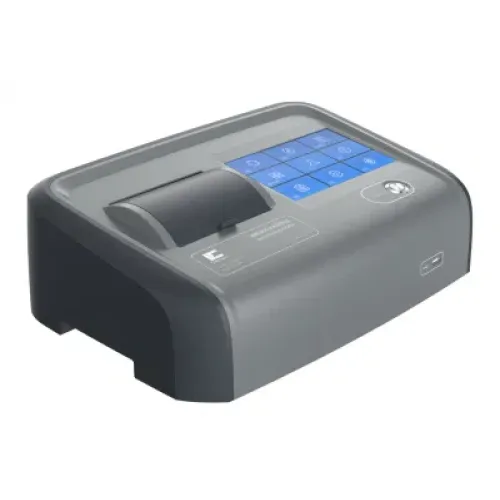

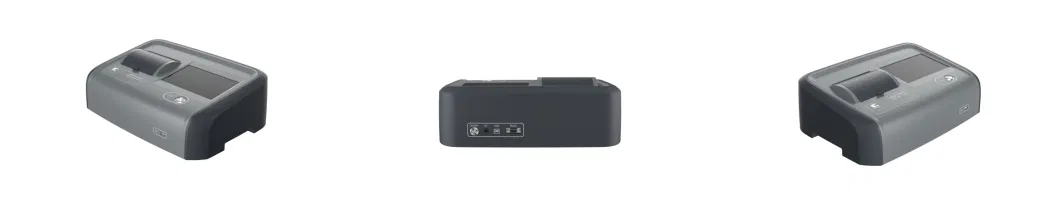

Model: DS-812N
Range: 360-780nm
Function: color detection
Measurement Stability: ΔE*ab≤0.015
Caliber: Standard configuration: 10mm glass colorimetric dish, 50mm glass colorimetric dish (optional 33mm and 100mm glass colorimetric dishes)
Support APP: No
Application Areas: Suitable for measuring easily solidified samples such as fat and wax, it can be heated up to 90 ℃ and maintained at that temperature, allowing the sample to be tested in a liquid state
Size: 56.5*42.0*31.5cm
Weight: 8.55kg
支持PC軟件: 支持
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it
通過更複雜的光學設計和對光傳輸方向的精確控制，最低液體請求減少到1ml，比上一代少34％，節省了昂貴的樣品。兼容的分光光度計餐具，無需額外購買或定制餐具。
| Product model | DS-812N |
| Measurement condition | d/0(,0)(:CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c,GB/T 3555,ASTM D156,GB/T 6540,ASTM D1500,ASTM D1209,ASTM D5386,ASTM D6045,ASTM D6166,ASTM D1502) |
| Stand-alone operation | Support |
| Integrating sphere | Φ40mm,Avian-D Fully diffuse surface coating |
| Lighting source | CLEDs(Full band balanced Led light source) |
| Inductor | Dual optical sensor array sensor |
| Wavelength range | 360-780nm |
| Wavelength interval | 10nm |
| Half-band width | 5nm |
| Measuring range | 0~200% |
| Resolution | 0.0001 |
| Observer Angle | 2°/10° |
| Observation light source | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V4 |
| Display | Pharmacopoeia color number, transmission map/data, sample chromaticity value, color difference value/map, pass/fail result, color deviation, color simulation, historical data color simulation, manual input of standard sample, test report |
| Measuring time | ≤1.5s |
| Measuring optical path | Standard: 10mm glass cuvette, 50mm glass cuvette (optional 33mm and 100mm glass cuvette) |
| Color space | CIE Lab,LCh,CIE Luv,XYZ,Yxy,Transmissivity, Hunter Lab Munsell,MI,CMYK |
| Color difference formula | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*02 |
| Other indicators | Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, American Pharmacopoeia),WI(ASTM E313-20,ASTM E313-73,CIE,ISO2470/R457,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-20,ASTM E313-73),Tint(ASTM E313-20),Allochromic index Milm,APHA,Hazen,Pt-Co(Platinum-cobalt index),Gardner(Gardner index),Iron cobalt index,Saybolt(Seibert index),ASTM Color,EBC(Beer color),ICUMSA Color(Sugar chroma) |
| Repeatability | Transmittance: standard deviation ≤0.08% Colorimetric value: ΔE*ab≤0.015 standard deviation, maximum ≤0.04 |
| Inter instrument agreement | ΔE*ab < 0.25 |
| Heating function | / |
| Heating temperature range | / |
| Audit trail | Yes (as required by FDA and CFDA) |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
港口: Contact salesperson to confirm
