手機號: CR20
型號NO.: CR20
證明: RoHS, ISO9001, CE
Customized: Non-Customized
Geometry: 45/0
Lighting Source: LED(Full band balanced LED light source)
Illumination Aperture: 4mm
Wavelength Interval: 10nm
Wavelength Range: 400nm-700nm
Test Time: 1.0s
Interface: USB, Bluetooth
語言: Chinese, English
Calibration: Automatic calibration
Software Support: Andriod, IOS, Wechat applet, Windows
Weight: About 75g
Size: Diameter: 33mm, height: 84mm
Storage: APP Mass Storage
Transport Package: Carton
Specification: 18x4x4
Trademark: CHNSpec
Origin: China
HS編碼: 9027300090
After-sales Service: 10 Years
Warranty: 1 Year
Detection Method: Spectrophotometer
Advantage: High Resolution
Wavelengths: Visible Spectrometer
Dispersive Element: Grating Spectrometer
| 銷售組織: | Piece/Pieces |
| 下載: |
|
The file is encrypted. Please fill in the following information to continue accessing it

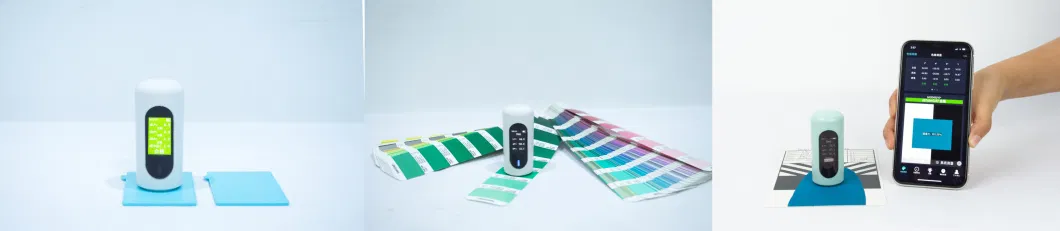

CR-10 /20 /30色low表採用45° / 0的測量結構，與人眼的評估顏色更一致。比色表的尺寸很小，易於攜帶。該儀器可以與Android或iOS設備無線連接，並且可以在手機上管理顏色。
產品功能
*自動校準，單鍵測量，以1秒為單位
*採用45°/0的幾何形狀，這與人眼的顏色評估更加一致
*可以獨立使用或連接到應用
*支持：Android，iOS，Windows QC軟件
*磁校準框
*口紅大小，更方便攜帶
| Name |
CR20 (Professional version with screen) |
| Geometry | 45/0 |
| Test Index |
RGB, hex, lab, LCH, HSB, LRV, spectral reflectance, CIE LAB, CIE LCH, hunterlab, CIE luv, XYZ, YXY, RGB,Chromatic aberration( Δ E*ab, Δ E*cmc, Δ E*94, Δ E*00), Whiteness (ASTM e313-00, ASTM e313-73, CIE / ISO, AATCC, hunter, taubebergerstensby),
Yellowness (ASTM d1925, ASTM e313-00, ASTM e313-73),Blackness (my, DM), color fastness, color fastness, tint (ASTM e313-00),Color density CMYK (a, t, e, m), homochromatic spectrum index milm, Munsell, hiding power, power (dye strength, coloring power) |
| Lighting source | LED(Full band balanced LED light source) |
| Illumination aperture | 4mm |
| Wavelength interval | 10nm |
| Wavelength range | 400nm-700nm |
| Short term repeatability | ΔE*00≤0.05 |
| Inter-instrument agreement | ΔE*00<0.4 |
| Accuracy | 0.1 |
| Test time | 1.0s |
| Interface | USB,Bluetooth |
| Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 |
| Observer | 2°,10° |
| Screen | IPS full color screen(135*240,1.14inch) |
| Battery capacity | 5000 consecutive measurements can be made with a single full charge |
| Language | Chinese, English |
| Calibration | Automatic calibration |
| Software support | Andriod,IOS,Wechat applet,Windows |
| Weight | About 75g |
| Size | Diameter: 33mm, height: 84mm |
| Storage | App mass storage |
