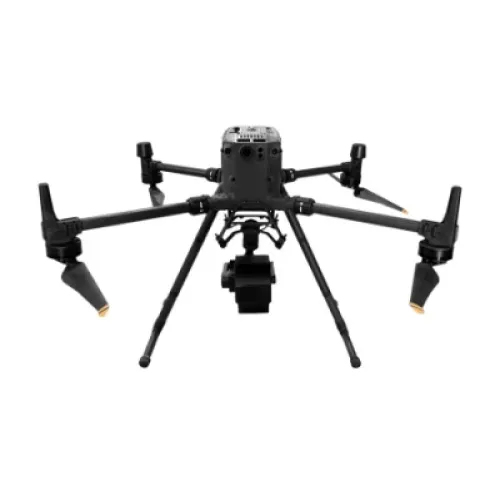

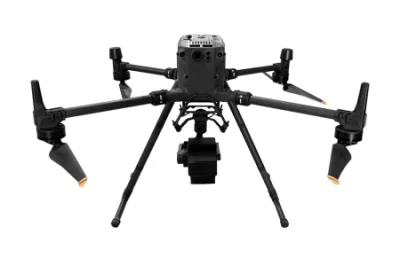

CHNSPEC FS-50/150無人機多光譜成像攝像頭
FigSpec®FS-50系列是來自Color Spectrum Technology Company的新一代無人多光譜攝像機,適用於DJI M350/M300RTK飛行平台,具有30-180個光譜頻道和2K分辨率。它可以滿足精確農業,國土安全,預防災難和林業監測,河流和湖泊生態,目標識別和其他行業的應用需求。

該系統具有緊湊的設計和成像光譜儀主機的高光譜分辨率。完整的機器組成:高穩定性PTZ,高光譜成像儀,大容量存儲系統,無線圖像系統,GPS導航系統,接收接收工作站和地面控制系統。
產品功能
  • 超高光譜通道:30-180譜通道(不同的模型)
  • 2K空間分辨率
  • 全局快門,12位高精度抽樣數據
  • 地面站實時預覽數據獲取
  • DJI X端口控制和電源,512GSSD質量存儲
  • DJI M350/M300 RTK無人機自定義,插件和播放
  • FIGSPEC無人機實時飛行控制軟件,Figspec合併拼圖軟件,FIGSPEC Stution圖像分析軟件
CHNSPEC FS-50/150 UAV多光譜成像攝像頭400-1000Nm
Serial number Index Parameter
1 Spectral range 400-1000nm Per 4nm Output a wavelength
2 Spectral channel number 150
3 Spectral resolution (FWHM) 2.5nm
4 Slit width 25um
5 Spatial resolution 1920
6 Sampling rate 128 line/S
7 Image sensor 1/1.1 inch CMOS
8 Effective pixel 1920
9 Shutter type Global shutter
10 Quantization number 12bit
11 Visual field 25.36 °
12 Ground resolution 2.8 cm @ h120m
13 Covering width 54m@h120m
14 Optical window High transmittance optical glass window
15 Main engine size ≤155*95*119mm
16 Main engine weigh ≤840g
17 Installation/power supply por X-Port
18 Work loss 45w
19 Picture forma 12bit.SPE (compatible with third party analysis software such as envi)
20 Data storage space 512SSD
21 Application software FIGSPEC UAV real-time flight control software, FIGSPEC Merge puzzle software, FIGSPEC Studion image analysis software
22 Shooting method Real-time acquisition


Serial number Content Serial number Content
1 Camera host *1 7 Packing List *1
2 Adapter 12V 3A  *1 8 Reflectivity Board*1
3 HDMI high-definition cable 0.5 meters *1  9 Reflectivity Cloth*1
4 Standard lens *1
5 USB flash drive*1
6 Certificate of Conformity & Warranty Card*1
