手機號: FS-50/30
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it

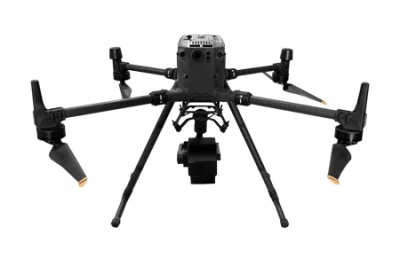

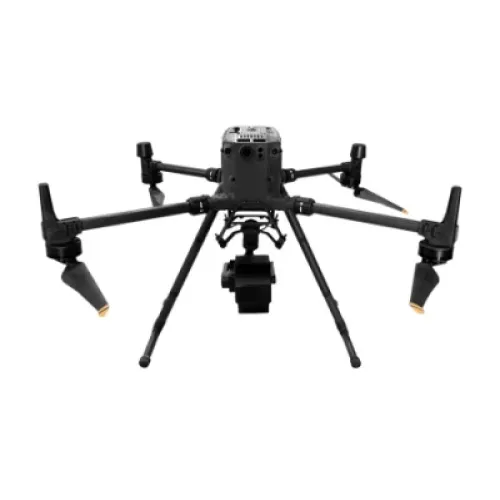

由Color Spectrum Technology Company開發的FigSpec®FS-50系列是針對DJI M350/M300RTK飛行平台量身定制的新一代無人多光譜攝像機。它以30-180個光譜渠道和2K分辨率為特色，以解決精密農業，國土安全，預防災難，林業監測，河流和湖泊生態學以及目標識別等行業的應用需求。
該系統是緊湊的，並提供高光譜分辨率，其成像光譜儀。完整的設置包括高度穩定的PTZ，一個高光譜成像儀，大容量存儲系統，無線圖像傳輸系統，GPS導航系統，接收接收工作站和地面控制系統。
產品功能：
| Serial number | Index | Parameter | |
| 1 | Spectral range | 400-1000nm Per 20nm Output a wavelength | |
| 2 | Spectral channel number | 30 | |
| 3 | Spectral resolution (FWHM) | 3.5nm | |
| 4 | Slit width | 25um | |
| 5 | Spatial resolution | 1920 | |
| 6 | Sampling rate | 128 line/S | |
| 7 | Image sensor | 1/1.1 inch CMOS | |
| 8 | Effective pixel | 1920 | |
| 9 | Shutter type | Global shutter | |
| 10 | Quantization number | 12bit | |
| 11 | Visual field | 25.36 ° | |
| 12 | Ground resolution | 2.8 cm @ h120m | |
| 13 | Covering width | 54m@h120m | |
| 14 | Optical window | High transmittance optical glass window | |
| 15 | Main engine size | ≤155*95*119mm | |
| 16 | Main engine weigh | ≤840g | |
| 17 | Installation/power supply por | X-Port | |
| 18 | Work loss | 45w | |
| 19 | Picture forma | 12bit.SPE (compatible with third party analysis software such as envi) | |
| 20 | Data storage space | 512SSD | |
| 21 | Application software | FIGSPEC UAV real-time flight control software, FIGSPEC Merge puzzle software, FIGSPEC Studion image analysis software | |
| 22 | Shooting method | Real-time acquisition |
| Serial number | Content | Serial number | Content |
| 1 | Camera host *1 | 7 | Packing List *1 |
| 2 | Adapter 12V 3A *1 | 8 | Reflectivity Board*1 |
| 3 | HDMI high-definition cable 0.5 meters *1 | 9 | Reflectivity Cloth*1 |
| 4 | Standard lens *1 | ||
| 5 | USB flash drive*1 | ||
| 6 | Certificate of Conformity & Warranty Card*1 |
