手機號: CTX-75
Model: CTX-75
Range: 400-700nm

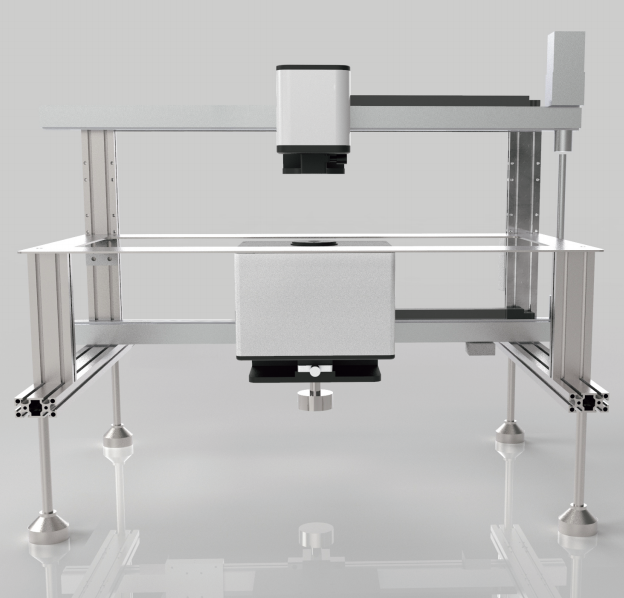

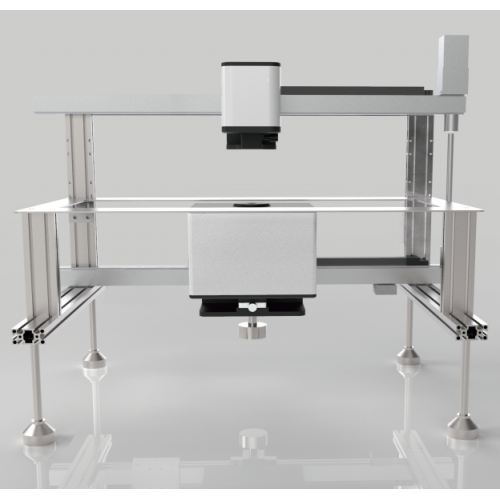

Function: Can quickly and accurately measure the color of an object's surface through non-contact methods, without contaminating or damaging the sample; It can also be installed on assembly lines and robotic arms.
Caliber: 21mm
Measurement Stability: 0.1
Support APP: No
Support PC Software: No
應用區域: 它可以安裝在裝配線和機器人臂上，以實時監視產品的顏色，向後傳輸數據並提供及時的產品質量反饋。
Size: 230x160x150mm
Weight: 2.7kg
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
|
Product model
|
CTX-75 |
|
Measurement structure
|
0/d |
|
Measurement repeatability
|
Haze ≤ 0.1, Transmittance ≤ 0.1 |
| Display accuracy | zero point one |
| Measuring caliber | 21mm |
| Measurement indicators | Haze, Total transmittance |
| Range | 0-100% |
| Light source conditions | A、C、D65 |
| Lighting source | Full band balanced LED light source |
| Compliant with standards | ASTM D1003/D1044, ISO 13468/ISO14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08 |
| Measurement time | Single measurement for 3 seconds |
| Measurement interval | 1 second (excluding motor movement time) |
| Instrument interface | RS485 |
| Motor interface | RS485 |
| Light source lifespan | 1 million times in 10 years |
