手機號: DS-700C-2

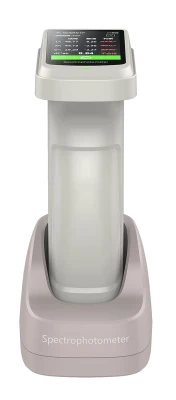

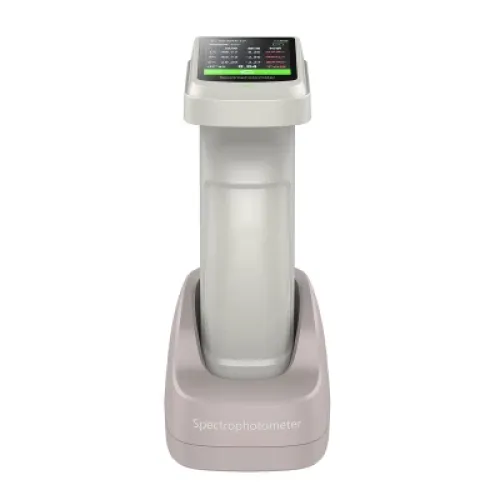

Model: DS-700C-2
Range: 400-700nm
Function: color detection
Measurement Stability: ΔE*ab≤ 0.02
Caliber: There are 8 stable and flexible types: Φ11mm, Φ6mm, Φ3mm, 1*3mm ▽11mm, ▽6mm, ▽3mm, ▽1*3mm
支持應用程序: 支持
支持PC軟件: 支持
應用區域: 主要用於材料顏色檢測，例如噴塗，塑料，印刷，金屬，陶瓷，建築材料，皮革，油漆等。
Size: 36.0*37.0*22.0cm
Weight: 2.24kg
| 銷售組織: | Piece/Pieces |
| 下載: |
|
The file is encrypted. Please fill in the following information to continue accessing it
DS-700C-2分光光度計與Windows Color Management System ColoreXpert連接到儀器上，該系統通過藍牙或USB電纜連接DS-700C-2分光光度計。
Colorexpert是一個功能齊全的顏色管理軟件，具有四個功能模塊：我的顏色，顏色檢測，顏色匹配系統和個人中心。
產品功能
*45°圓形照明，觀察角0°。創新的圓形照明系統消除了方向依賴性，並最大程度地減少了紋理的影響。對磨砂，紋理和結構化材料表面的測量帶來了很大的優勢。
*出色的可重複性和儀器間協議。 （可重複性：DE*AB≤0.02（最大）和儀器間協議：≤0.2）
*通過第一級測量。
*10NM分辨率光譜技術。
*超過30種顏色指數和37種照明劑。
*它支持Android，iOS和Windows程序。
*與攝像機一起查看測量區域。
| Namel | Spectrophotometer DS-700C-2 |
| Geometry | 45/0 |
| Repeatability | dE*ab≤0.02 |
| Inter-Instrument Agreement | dE*ab≤0.25 |
| Display Resolution | 0.01 |
| Measuring aperture | 8 stable and smart:Φ11mm,Φ6mm,Φ3mm,1*3mm ▽11mm,▽6mm,▽3mm,▽1*3mm |
| Measurement index | Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB, chromatic aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),whiteness(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness(My,dM),Color fastness,Staining fastness,Tint(ASTM E313-00),Color densityCMYK(A,T,E,M),Metamerism indexMilm,Munsell,covering power,Force share(Color Strength) |
| Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1, LED-V2 |
| Light Source | Full-band balanced LED light source |
| Observer Angles | 2°,10° |
| Standards | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Spectroscopic method | Raster |
| Sensor | Dual-row high-precision CMOS array sensor |
| Wavelength interval | 10nm |
| Wavelength range | 400-700nm |
| Reflectance Range | 0-200% |
| Reflectivity resolution | 0.01% |
| Measurement and observation mode | Visual |
| Calibration | Intelligent automatic calibration |
| Software support | Andriod,iOS,Windows,WeChat applet |
| Accuracy | Metrology Level I |
| Measurement time | About 1 seconds |
| Interface | USB,Bluetooth |
| Screen | Full color screen,3.5 inches |
| Battery capacity | Rechargeable, 8000 times continuous tests, 7.2V/3000mAh |
| Light source Lifetime | 10 years, 1 million tests |
| Language | Chinese, English |
| Storage | Instrument: 100 standard samples and 10000 samples; APP: mass storage |
供應能力: Contact salesperson to confirm
港口: Contact salesperson to confirm
