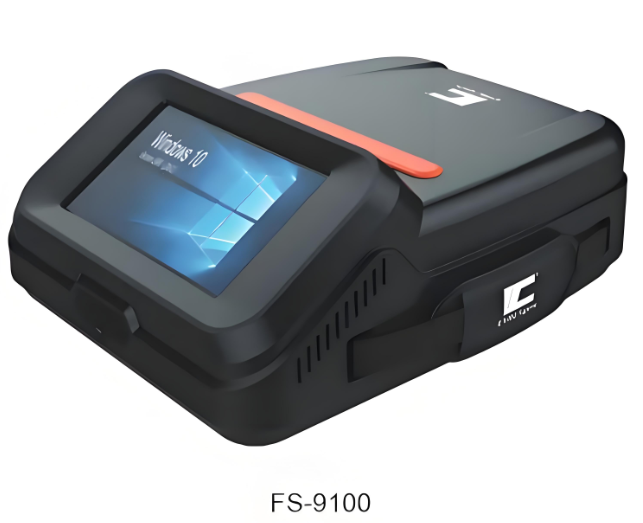

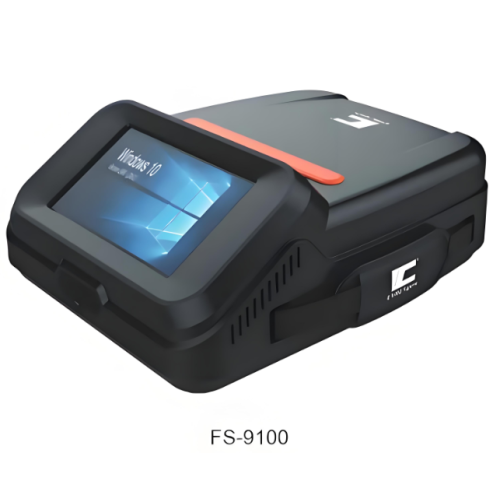

手機號: FS-9100 FS-9200 FS-9300
| 銷售組織: | Others |
The file is encrypted. Please fill in the following information to continue accessing it
| Model | FS-9100 | FS-9200 | FS-9300 |
| Type |
CMOS Linear Sensor |
300-950nm: CMOS linear array sensor 950-1700nm:lnGaAs detector, two-stage cooliing |
300-1000nm: CMOS linear array sensor 1000-2500nm: lnGaAs detector, two-stage cooling |
| Spectral range | 300-1100nm | 300-1700nm | 300-2500nm |
| Wavelength accuracy | ± 0.5nm @ VIS ，± 1.1nm @ SWIR | ||
| Spectral resolution | Up to 1.7nm |
300-950nm up to 1.7nm 950-1700nm up to 6.5nm |
300-950nm up to 1.7nm 950-1700nm up to 6.5nm |
| Field of view | Standard 25°, 1°/8°/15° optional | ||
| Maximum radition | VNIR 2 times sunlight/SWIR 10 times sunlight | ||
| Signal-to-noise raio | 380:1 |
300-950nm 380:1 950-1700nm 1200:1 |
300-1000nm 380:1 1000-2500nm 1200:1 |
| Spectral sampling interval | 0.45nm | Visible light: 0.4nm, short-wave infrared: 5.0nm | |
| Wavelength repeatability | ± 0.1nm @ VIS ，± 0.5nm @ SWIR | ||
