手機號: CRX-62
Model: CRX-62
Range: 400-700nm
Function: Can quickly and accurately measure the color of an object's surface through non-contact methods, without contaminating or damaging the sample; It can also be installed on assembly lines and robotic arms.
Caliber: Φ8mm/Φ21mm
Measurement Stability: dE*ab≤0.05
Support APP: No
Support PC Software: No
應用區域: 它可以安裝在裝配線和機器人臂上，以實時監視產品的顏色，向後傳輸數據並提供及時的產品質量反饋。
Size: 230x160x150mm
Weight: 2.7kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
The file is encrypted. Please fill in the following information to continue accessing it

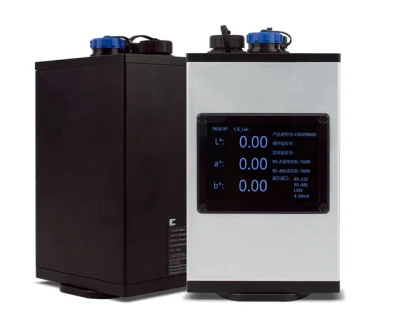

非接觸分光光度計是一種高精度的顏色測量儀器，可以通過非接觸方式快速而準確地測量物體表面的顏色，而不會對樣品污染或損壞；它也可以安裝在裝配線和機械臂上，以實時監視產品的顏色，返回數據並及時提供產品質量的反饋。
產品功能可以測量多種顏色指標
*防水和防塵，保護類IP66
*標準配備強大的PC數據管理軟件
*使用LED燈光來壽命更長
*支持內部校準以確保高儀器穩定性
*雙光路譜的顏色測量方法具有高速，高精度和良好重複性的優勢
*支持RS232，RS485，USB，網絡端口，模擬信號各種通信模式
| Model | CRX-62 |
| Geometry | 45/0 |
| Repeatability | dE*ab≤0.05 |
| Inter-instrument agreement | / |
| Display accuracy | 0.01 |
| Measuring/Lighting calibers | Φ8mm/Φ21mm |
| Measurement index |
Light source condition,
CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,
RGB,chromatic aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),whiteness(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC, Hunter,Taube Berger Stensby),yellowness(ASTM D1925, ASTM E313-00,ASTM E313-73),blackeness(My,dM), color fastness,color fastness,Tint(ASTM E313-00), color densityCMYK(A,T,E,M) |
| Light source condition |
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,
F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5, LED-BH1,LED-RGB1,LED-V1, LED-V2 |
| Lighting source | Full band balancedLED light source |
| Field angle | 2°,10° |
| Meet a criterion | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Spectroscopic method | Nanobeam splitting device |
| SenSor | Silicon optical array device |
| Wavelength interval | 10nm |
| Wavelength coverage | 400-700nm |
| Reflectance measurement range | 0-200% |
| Reflectance resolution | 0.01% |
| Measurement and observation mode | Visual |
| Calibration | Intelligent automatic calibration |
| Accuracy guarantee | Ensure the first level of measurement |
| Measuring time | Single measurement 110ms |
| Measuring interval | 1s |
| Port | USB,485,232,External trigger, analog output, Ethernet |
| Screen | Full color screen,3.5 inches |
| Light source lifetime | 1 million times in 10 years |
| Language | Simplified Chinese, English |
| Non-contact distance | 5mm |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
港口: Contact salesperson to confirm
