手機號: DS-410

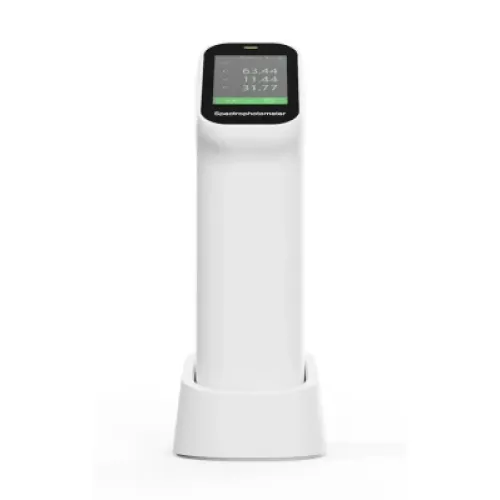

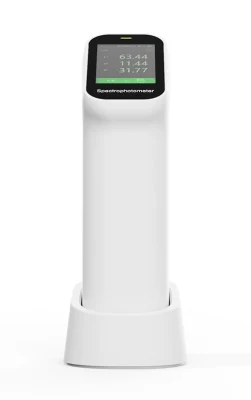

Model: DS-410
Range: 400-700nm
Function: color detection
Measurement Stability: ΔE*ab≤ 0.03
Caliber: There are 6 stable and flexible types: Φ11mm, Φ6mm, Φ3mm ▽11mm, ▽6mm, ▽3mm
支持應用程序: 支持
支持PC軟件: 支持
應用區域: 主要用於材料顏色檢測，例如噴塗，塑料，印刷，金屬，陶瓷，建築材料，皮革，油漆等。
Size: 35*35*19.5cm
Weight: 1.65kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
| 下載: |
|
The file is encrypted. Please fill in the following information to continue accessing it

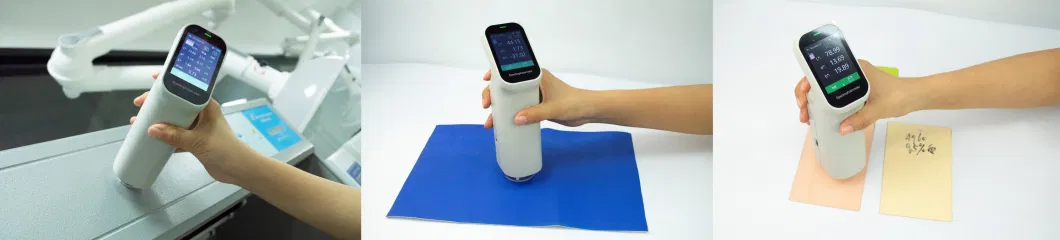

測量時，DS400系列可以通過相機獲得測試區域的圖像。它可以清楚地定位測試樣品的區域，以免檢測到錯誤的區域。
產品功能
*自動校準
*支持SCI/SCE
*覆蓋能力，白色，大喊大叫和其他30+測量指標
*提供近40個評估光源
*測量穩定性，可重複性0.03
*便攜式大型顏色卡數據庫
*包括紫外線，可以進行熒光顏色測量
*內置的高清攝像頭可清楚地觀察測試區域
| Name | DS-410 |
| Geometry | D/8,SCI+SCE |
| Repeatability | dE*ab≤0.03 |
| Display Resolution | 0.01 |
| Measuring aperture | 3 w/ plate and 3 w/o plate: Φ11mm,Φ6mm,Φ3mm ▽11mm,▽6mm,▽3mm |
| Measurement index |
Reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,Color difference(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),WI(ASTME313-00,ASTM E313-73,CIE,ISO2470/R457,,AATCC,Hunter, TaubeBergerStensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness(My,dM), Color Fastness, Tint,( 63696557,ASTM E313-00),Color Density CMYK(A,T,E,M),Milm, Munsell, Opacity, Color strength |
| Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1, LED-V2 |
| Light Source | Full-band balancedLED light source |
| Observer Angles | 2°,10° |
| Sphere Size | 40mm |
| Standards | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Spectroscopic method | Nanometer integrated spectral device |
| Sensor | Silicon photodiode array double 16 groups |
| Wavelength Interval | 10nm |
| Wavelength Range | 400-700nm(Users can view the reflectivity of 31 wavelengths) |
| Reflectance Range | 0-200% |
| Reflectivity resolution | 0.01% |
| Measurement method | Single measurement, average measurement (2~99 times) |
| Measurement time | About 1 second |
| Measurement and observation mode |
Camera |
| Calibration | Intelligent automatic calibration |
| Software support | Andriod,iOS,Windows,WeChat applet |
| Accuracy | Metrology Level I |
| Interface | USB,Bluetooth |
| Screen | Full Color Screen,2.4 inches |
| Battery capacity | Rechargeable, 8000 times continuous tests, 3.7V/3000mAh |
| Light Source Lifetime | 10 years, 1 million tests |
| Language | Chinese and English |
包裝: 聯繫銷售人員確認
供應能力: Contact salesperson to confirm
港口: Contact salesperson to confirm
