手機號: TH-110
Model: TH-110
Range: 0-100%
Function: Haze and transmittance detection
Caliber: 21mm,7mm
Measurement Stability: 0.05
Support APP: No
Support PC Software: support
Application Areas: A one-stop measurement solution for haze and transmittance of transparent and semi transparent materials such as plastics, films, glass, LCD panels, and touch screens.
Size: 66x46x33cm
Weight: 9.55kg
| 銷售組織: | Piece/Pieces |
| 下載: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Model |
TH-110 |
| Illuminants | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 |
| Parameters |
Haze and transmittance under ASTM and ISO double standards |
| Spectral response | CIE spectral function y / V( λ) |
| Geometry | 0/d |
| Test Aperture | 21mm,7mm |
|
Measurement Range
|
0-100% |
|
Haze Resolution
|
0.01% |
|
Haze Repeatability
|
0.05 |
| Sample size | Thickness≤145mm |
| Display | 7-inch touch screen, Android system |
|
Memory
|
Mass storage |
| Interface | USB interface |
| Power | DC12V/3A |
| Working temperature | 5 ~ 40 ºC, relative humidity 80% or lower (at 35 ºC), no water vapor condensation |
| Storage temperature | -20 ºC ~ 45 ºC, relative humidity 80% or lower (at 35 ºC), no water vapor condensation |
|
Size (LxWxH)
|
Length x width x height:310mmX215mmX540mm |
| Weight | 6kg |
| Standard Accessory | PC management software(Haze QC) |
|

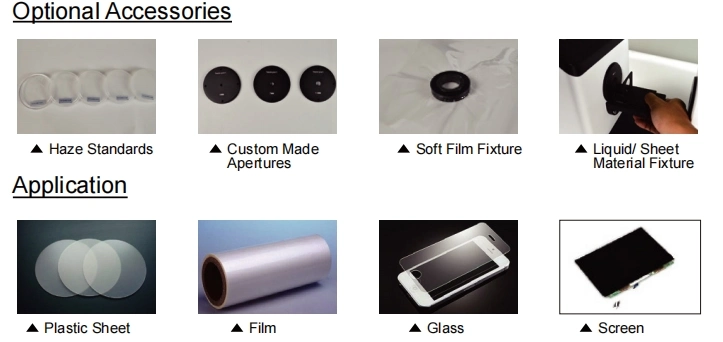

Optional
|
Measuring fixture, haze standard plate customized aperture
|
供應能力: Contact salesperson to confirm
港口: Contact salesperson to confirm
