手機號: CS-720
Model: CS-720
Range: 400-700nm
Function: One stop measurement solution for clarity, color, haze, spectral transmittance, and total transmittance
Caliber: 18mm/25.4mm
Measurement Stability: 0.01%
Support APP: No
Support PC Software: support
應用區域: 一站式測量解決方案，以實現清晰，顏色，霧度，光譜傳播以及透明和半透明材料（例如塑料，膜，玻璃，LCD面板和触摸屏）的總透射率。
Size: 70x34x56cm
Weight: 15.5kg
| 銷售組織: | Piece/Pieces |
| 套裝程式類型: | 聯繫銷售人員確認 |
| 下載: |
|
The file is encrypted. Please fill in the following information to continue accessing it
|
Model
|
CS-720 |
| Light source |
Haze / transmittance:CIE-A,CIE-C,CIE-D65
Chromaticity index:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84
|
| Standards |
ASTM D1003/D1044,ISO13468/ISO14782 JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,
ISO 7724/1,ASTM E1164,DIN 5033,Teil7,JIS Z8722,Condition C standard
|
| Parameters |
HAZE,Transmittance(T%),Clarity(C%),Spectral transmittance,CIE Lab,LCh,CIE Luv,XYZ,Yxy,Hunter Lab ,MunsellMI,
CMYK,Whiteness WI(ASTME313-00,ASTM E313-73CIE/ISOHunter,Taube Berger Stensby),Yellowness YI(ASTM D1925,
ASTME313-00,ASTM E313-73),Tint(ASTM E313-00),Homochromatic heterospectral index MilmAPHA,Pt-Co,
Gardner,chromatic aberration (ΔE*abΔE*CH ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00)
|
| Spectral response | CIE spectral function y / V( λ) |
| Wavelength range | 400-700nm |
| Wavelength interval | 10nm |
| Geometry | 0/d |
|
Illumination and test
aperture size |
18mm/25.4mm |
| Range | 0-100% |
| Haze resolution | 0.01% |
| Haze repeatability | Repeatability ≤ 0.05% when haze < 10%; Repeatability ≤ 0.1% when haze ≥ 10%; Transmittance repeatability ≤ 0.1% |
| sample size | Thickness≤145mm |

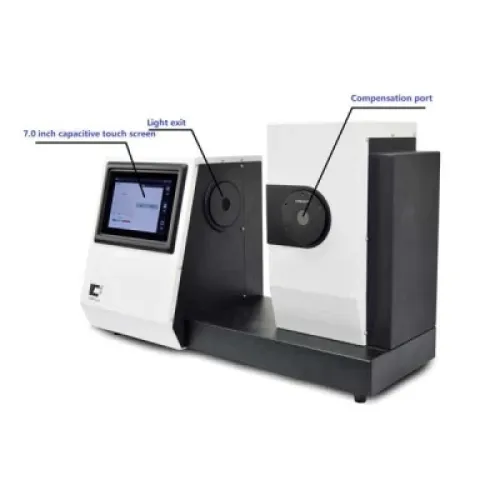

| Display | 7-inch capacitive touch screen |
| Store data | Mass storage |
| Interface | USB-A,USB-B |
| Power Supply | 220V(Built in power cord) |
| Working temperature | 5 ~ 40 ºC, relative humidity 80% or lower (at 35 ºC) no water vapor condensation |
| Storage temperature | -20 ºC ~ 45 ºC, relative humidity 80% or lower (at 35 ºC) no water vapor condensation |
| size | Length x width x height:598mmX247mmX366mm |
|
Weight
|
12kg |
| Standard acessory | PC management(Haze QC) |
| Optional | Measuring fixture, haze standard sheet, customized caliber plate |
