手機號: CTX-70

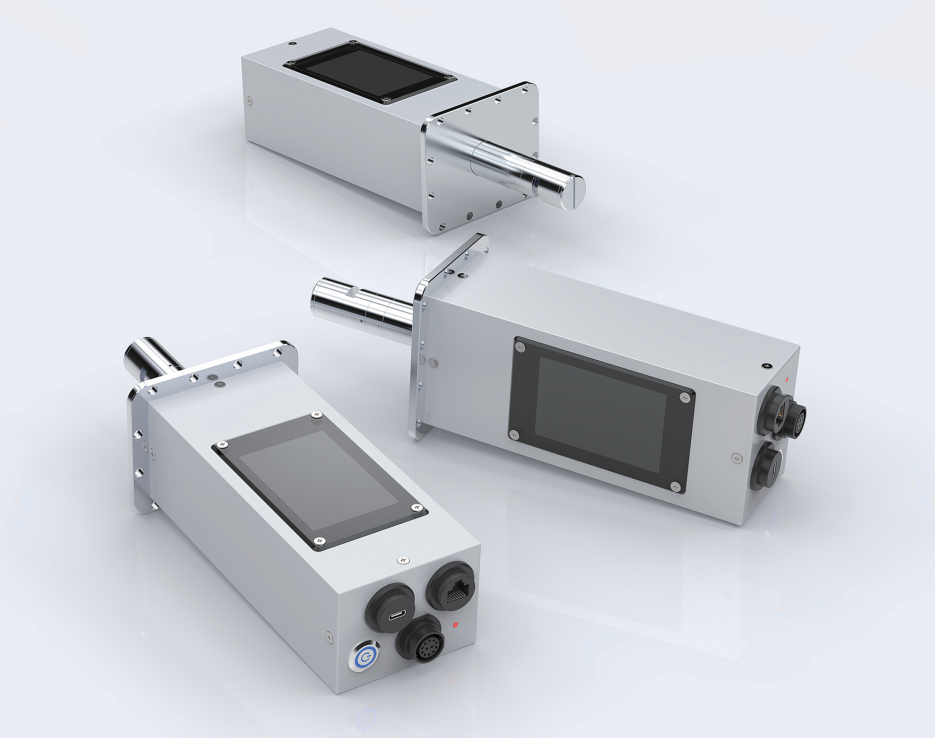

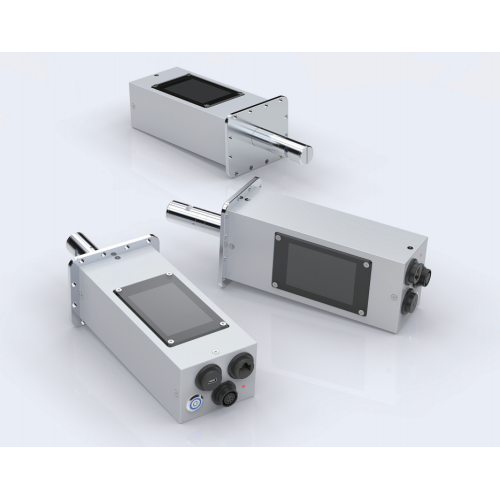

Model: CTX-70
Range: 400-700nm
Function: Can quickly and accurately measure the color of an object's surface through non-contact methods, without contaminating or damaging the sample; It can also be installed on assembly lines and robotic arms.
Caliber: 10mm
Measurement Stability: 0.01
Support APP: No
Support PC Software: No
應用區域: 它可以安裝在裝配線和機器人臂上，以實時監視產品的顏色，向後傳輸數據並提供及時的產品質量反饋。
Size: 230x160x150mm
Weight: 2.7kg
| 銷售組織: | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
| Model number | CTX-70 |
| Measuring principle | Spectral absorption |
| Measurement structure | 0/0 |
| Reproducibility | Single wavelength less than 0.1%, chromaticity dE*ab≤0.02 |
| Display Accuracy | 0.01 |
| Measurement aperture | 10mm |
| Measurement indicators | CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,Spectral Transmittance,RGB,Color Difference(ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*WI(ASTME313-00,ASTME313-73,CIE/ISO,Hunter Taube, Berger, Stensby), YI (ASTMD1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), APHA, Hazen, Pt-Co (Platinum Drill Index), Gardner, Saybolt, Astm color. Astm color |
| Light source conditions | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83 TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1, LED-V |
| Lighting sources | Full-band balanced LED light source |
| Field of view | 2°，10° |
| Spreading method | encoder |
| Inductor (elec.) | Dual-row, high-precision CMOS array sensors |
| Wavelength interval | 10nm |
| Wavelength range | 400-700nm |
| Transmission rate measurement range | 0-100% |
| Resolution (of a photo) | 0.01% |
| Biometrics | Better than ±0.5% |
| Measuring time | 100ms |
| Measuring interval | 1s |
| Connector | USB, 485, 232, external trigger,( 63693031,4-20mA) analog signal output, Ethernet |
| Supply Voltage | DC 12V /3 A via cable |
| Screens | Full color screen, 3.5 inches, with external large touch screen controller |
| Lifetime of light source | 10 years 1 million times |
| Multilingualism | Simplified Chinese, English |
| Sensor Head Size | 71mm length, 23mm diameter, 10mm optical range, size and range customization acceptable |
| Weights | Less than 1.2KG |
| Window material | Quartz glass (optional sapphire glass) |
| Immersion material | 316L，FKM |
| Protection class | IP65 |
| Operating temperature | 0 °C to 120 °C |
| Environmental humidity | 0 % RH to 100 % RH |
| Optical Circuit Design | With compensation function, not subject to changes in temperature, pressure, flow rate and other interference, with light source attenuation compensation optical path design |
| Installation | Flow-through pipe mounting for flange mounting in all sizes |
